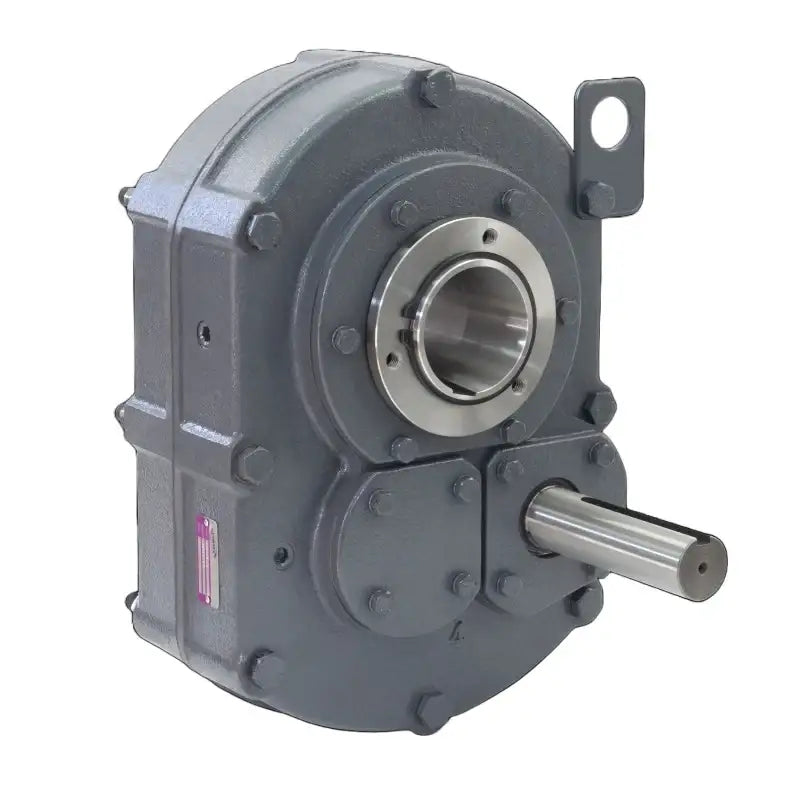

Type TXT309 Reducer 9:1 Ratio Size 3 Shaft Mount Reducer
Login to Request a Quote
Our type TXT309 reducer provides the ultimate reliability, performance, and torque capabilities even in the toughest applications while being a direct drop-in replacement for other brands. The type TXT309 shaft mount reducer has a reduction value of 9:1 and is a size 3 box commonly used to transmit power to conveyors in aggregate, agricultural, and material handling applications.
What really sets this TXT309 type reducer apart is the A.G.M.A precision case-hardened ground gearing made from high-grade steel that creates a reduced amount of heat, lower friction, and vibration compared to other units and is encompassed within a heavy-duty cast iron housing, resulting in a higher capability of transmitting horsepower and an extended lifespan. This type TXT309 shaft mount reducer also has high-precision bearings and a high-strength shaft for optimal fitment and extended bearing life. Unique spring-loaded rubber jacketed double-lipped seals to prevent leakage; each TXT309 type reducer is pressure tested to ensure leak-free performance. Additionally, this gearbox features an exceptional finish that is highly resistant to corrosion for an extended life in outdoor environments. If you would like more information or to request a quote on our type TXT309 reducer, don't hesitate to get in touch with our customer service team, and we will gladly help you!
Type TXT309 Reducer Dimensions
- Part #: VORTXT309
- Ratio: 9:1
- Box Size: 3
- Dimension (L): 9.25"
- Dimension (M): 12.88"
- Dimension (N): 9.22"
- Dimension (F): 1.25" Length
- Key: 0.25" X 0.125" X 2.875"
- Maximum Dimension (B): 2-3/16""
- Dimension (C): 1.50"
- Dimension (E): 4.38"
- Dimension (G): 2.34"
- Dimension (W): 1.06"
- Dimension (U): 1.25"
- Dimension (X): 4.52"
- Dimension (V): 3.30"
- Dimension (Q): 4.34"
- Dimension (Y): 1.59"
- Dimension (H): 5.63"
- Dimension (A1): 2.33"
- Dimension (A2): 4.78"
- Dimension (A3): 4.17"
- Dimension (h): 4.84"
- Minimum Dimension (R): 26.94"
- Maximum Dimension (R): 32.94"
- Dimension (P): 0.44"
- Dimension (T): 3.00"
- Gear Box Weight: 106 LBS
