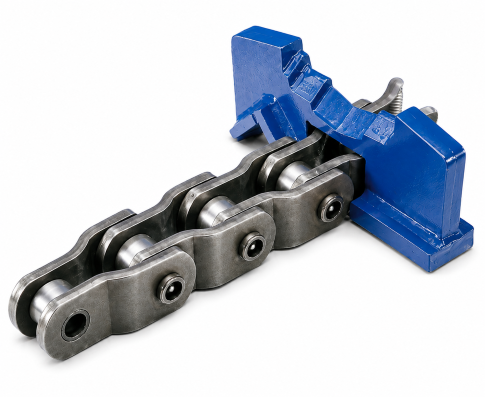

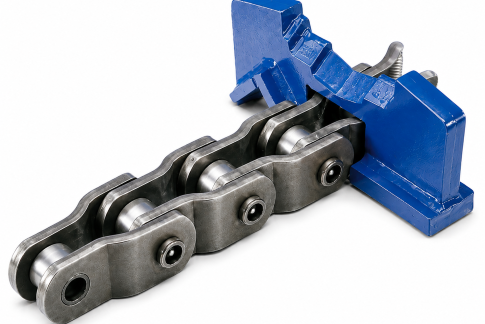

VC50LR Double Length Infeed/Scanning Chain
Product is supplied cut to your requested length.
High-Speed Double Length Infeed/Scanning Chain with Greaseable Rivets.
VC50LR Double Length Infeed/Scanning Chain (Connexus) is designed for demanding wood-processing systems involving the high-speed scanning, infeed, and auto-rotation of logs/lumber. Its durable, precise construction supports controlled chain travel and dependable material movement through compatible log-handling equipment.
Featuring a 3.067" pitch and an ultimate strength of 110,000 lbs, VC50LR chain is built for applications where chain accuracy, dependable operation, and proper guidance are essential.
As an LR model, this chain has a grease fitting in every rivet. These individually greaseable rivets allow lubricant to be applied directly at each rivet, ensuring easy and efficient lubrication.
The Double Length Infeed chain series uses precision conveyor-chain construction and custom heat-treated components to support durability in demanding, high-speed wood-processing applications. Treated surfaces are also used to help extend wear life and keep operations moving!
VC50LR is specifically identified in the manufacturer’s dimensional chart as a straight-sidebar chain.
VC50LR LR Double Length Infeed/Scanning Chain Features
Grease Fitting in Every Rivet
Every rivet is equipped with its own grease fitting, allowing lubricant to be applied directly at each rivet location during scheduled chain maintenance.
High-Speed Log Processing
Designed for high-speed infeed and scanning systems used to move, position, and process logs through compatible wood-processing equipment.
Scanning & Auto-Rotation Systems
Built for applications involving the accurate scanning and auto-rotation of logs at high operating speeds.
Accurate Chain Guidance
Designed for use with accurate guiding systems to support controlled chain travel and consistent movement through compatible equipment.
Precision Chain Construction
Precision conveyor-chain construction supports the durability and accuracy required in demanding high-speed log-handling systems.
Heat-Treated Components
Custom heat-treated components and treated surfaces are used to support durability and extended wear life in demanding applications.
Wood-Processing Applications
Intended for infeed, scanning, auto-rotation, and related log-handling systems used in sawmills and wood-processing facilities.
Guide Rail & Sprocket Support
Designed to operate as part of a properly matched conveying system incorporating compatible guide rails, sprockets, and related components.
VC50LR Double Length Infeed/Scanning Chain Specifications
- Part #: VC50LR
- Chain Series: Double Length Infeed/Scanning Chain
- LR Rivet Lubrication: Grease fitting in every rivet
- Pitch: 3.067 inches
- Ultimate Strength: 110,000 lbs
- Dimension (D): 0.75 in.
- Dimension (W): 1.56 in.
- Dimension (T): 0.38 in.
- Dimension (A): 2.31 in.
- Dimension (H): 2.25 in.
- Dimension (B): 1.62 in.
- Dimension (F): 3.94 in.
