US-6566 Chain
Home > Specialty Chain > Engineering Class Chains > Straight Sidebar Drive Chains > US-6566 Chain

US-6566 Chain

SKU: US-6566-CHAIN
In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability
Request a Quote
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

Call us!

Buy it With:

 [{"variant_id":"51715453190511" , "metafield_value":""}]
US-6566 Chain Description/Features
US-6566 Chain Specifications

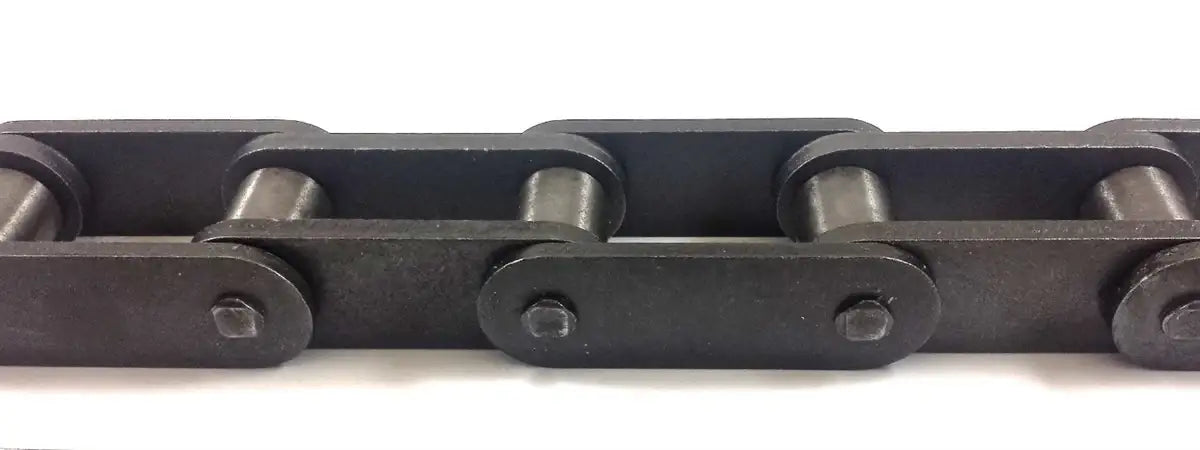

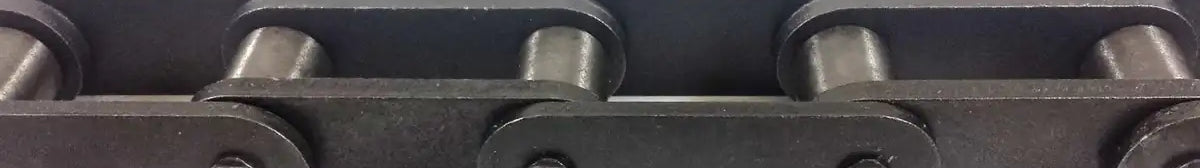

This US-6566 chain is a straight sidebar drive chain that is manufactured to be high strength, durable, and have great performance. We offer some of the best pricing in the industry on US-6566 chain! US-6566 chain is found in some of the most sever applications on earth including power drives, constructing machinery, and heavy duty conveyors. US-6566 can even operate in these harsh applications at moderately high speeds. This chain has been manufactured using select grades of alloy steel for high strength and durability, along with press fitted pins to prevent pin rotation. Additionally we offer a full line of high quality US-6566 chain sprockets that range in, construction, tooth count, bore, and hub configurations. For pricing and availability on US-6566 straight sidebar drive chain or sprockets please contact us.

Dimensions:
US-6566 Chain
  • Part Number: US-6566
  • Pitch: 6.500"
  • Style: Straight Sidebar
  • Ultimate Strength: 600,000 LBS
  • Weight Per Foot: 71.10 LBS
  • Rated Working Load: 30,600 LBS
  • Pin Diameter (G): 1.750"
  • Inside Width (E): 3.250"
  • Dimension (B): 4.380"
  • Dimension (C): 3.950"
  • Pin Style: K/ Full Round
  • Pin Material: Heat-Treated & Induction Hardened Alloy Steel
  • Roller Diameter (D): 3.500"
  • Roller Material: Heat-Treated Alloy Steel
  • Sidebar Thickness (T): 0.880"
  • Sidebar Height (H): 6.000"
  • Sidebar Material: Heat-Treated Alloy Steel
  • Bushing Diameter: 2.440"
  • Bushing Material: Heat-Treated Alloy Steel
