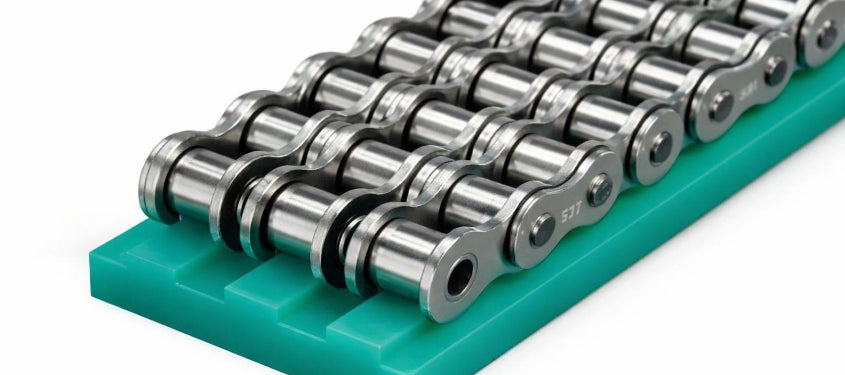

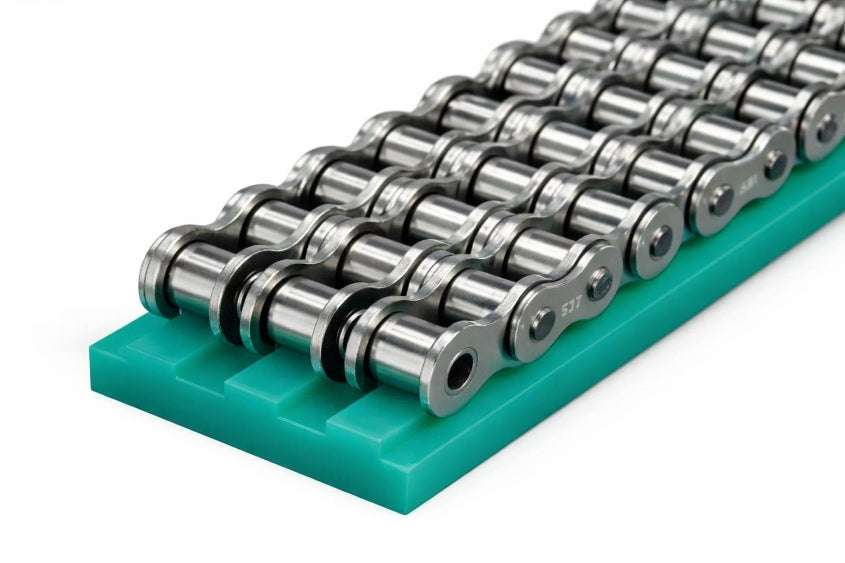

Type-T 20B-3 Chain Guide - Triplex

Our Type-T 20B-3 chain guide is manufactured to high precision tolerances and conforms to ISO and DIN 8187 standards, thus guiding 20B-3 roller chain in the most effective and productive manner possible. Using a roller chain guide is common in most conveying applications where you don't want metal-on-metal contact for wear purposes. Not only does using a chain guide drastically increase the wear life of a roller chain, but it also reduces on noise levels in applications that have metal-on-metal contact. This guide is typically in stock as 10ft lengths but we can also supply chain guides in custom lengths upon request. Standardly this guide is in stock as a green UHMW that conforms to European guidelines but other materials are available upon request.

Type T 20B-3 Chain Guide Dimensions

• Chain Size: 20B-3
• Chain Dimensions: 1-1/4" X 3/4"
• Dimension (B): 91mm
• Dimension (H): 20mm
• Dimension (E): 18mm
• Dimension (T): 4.2mm
• Dimension (W): 91mm

Besides chain guides we can also supply high quality metric roller chains, metric roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-T 20B-3 chain guide or for additional information please contact our sales team and we will be happy to assist you.
