Type-CU 12B Chain Guide - Mounted

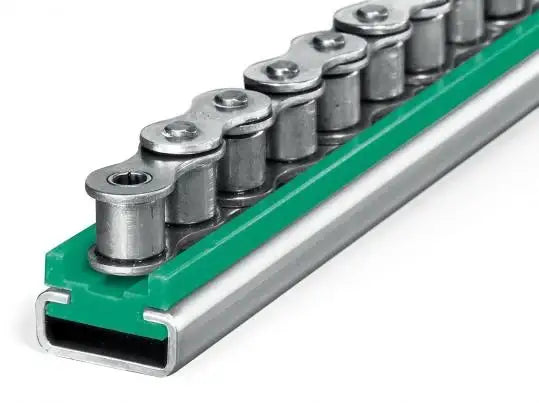

Our mounted Type-CU 12B chain guide is manufactured to high precision tolerances and conforms to ISO and DIN 8187 standards, thus guiding 12B roller chain in the most effective and productive manner possible. This chain guide is a mounted style meaning that it uses a steel mounting channel, specifically the Type-CU 12B chain guide uses a C5 profile. We keep C5 profile mounting channels in stock in galvanized, non galvanized, and stainless steel materials. Using a roller chain guide is common in most conveying applications where you don't want metal-on-metal contact for wear purposes. Not only does using a chain guide drastically increase the wear life of a roller chain, but it also reduces on noise levels in applications that have metal-on-metal contact. This guide is typically in stock as 10ft lengths but we can also supply chain guides in custom lengths upon request. Standardly this guide is in stock as a green UHMW that conforms to European guidelines but other materials are available upon request.

Type CU 12B Chain Guide Dimensions

• Chain Size: 12B
• Chain Dimensions: 3/4" X 7/16"
• Dimension (B): 24mm
• Dimension (W): 28mm
• Dimension (H): 12mm
• Dimension (N): 18mm
• Dimension (R): 7mm
• Dimension (G): 17mm
• Dimension (T): 3.9mm
• Dimension (F): 5.7mm

C5 Profile Dimensions

• Dimension (B): 28mm
• Dimension (T): 14mm
• Dimension (H): 12mm
• Dimension (W): 2mm

Besides chain guides we can also supply high quality metric roller chains, metric roller chain sprockets, gear reducers, shafting, and more! To get a quote on Type-CU 12B mounted chain guide or for additional information please contact our sales team and we will be happy to assist you.
