24" Stub Shaft

24" Stub Shaft

Note: Custom Cut to Length Chain Also Available
Product Code: STUB-SHAFT-24
Shipping calculated at checkout.
View full details

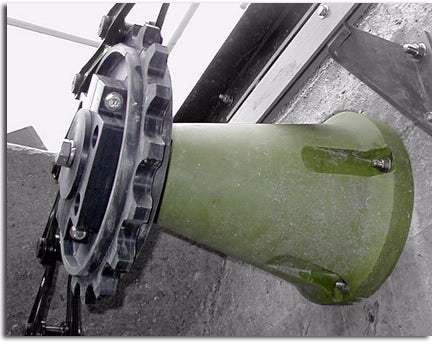

This 24" stub shaft is manufactured out of cast nylon and eliminates steel idler shafting by replacing the metallic wall bearings and heavy steel shafts with high strength cast nylon stub shafts. The key to cast nylon stub shafts are their unique design and a one piece casting, this creates integral strength and extended durability. Due to the materials natural properties, stub shafts do not require lubrication and are highly resistant to deflection under load and UV inhibited to ensure a long working life and trouble free operation. For more information or to get a quote on a 24" stub shaft please contact us and we will be happy to assist you.

Dimensions:
24" Stub Shaft
  • Stub Shaft Size: 24"
  • Material: Cast Nylon
  • Base Plate Diameter (D): 15"
  • Overall Length (L): 29-1/4"
  • Wall to Centerline Sprocket (C): 24"
  • Base Length (B): 19"
  • Spindle Length (L2): 10-1/4"
  • Spindle Diameter: 4"

Phone: (407) 347-3519
Email:
sales@usarollerchain.com

Click Here To See Our Other Products!

Feature

  • 24" Stub Shaft
  • Extremely Durable and High Strength
  • Primarily Used in Wastewater Applications
  • Typically In-Stock
  • Manufactured Out of Non-Metallic Materials
Featured image
  • Stub Shaft Size: 24"
  • Material: Cast Nylon
  • Base Plate Diameter (D): 15"
  • Overall Length (L): 29-1/4"
  • Wall to Centerline Sprocket (C): 24"
  • Base Length (B): 19"
  • Spindle Length (L2): 10-1/4"
  • Spindle Diameter: 4"
