12" Stub Shaft

Name: 12" Stub Shaft
Brand: USA ROLLER CHAIN
SKU: STUB-SHAFT-12
Availability: InStock

Note: Se habla espanol

SKU: STUB-SHAFT-12

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

12" Stub Shaft Description/Features

12" Stub Shaft Specifications

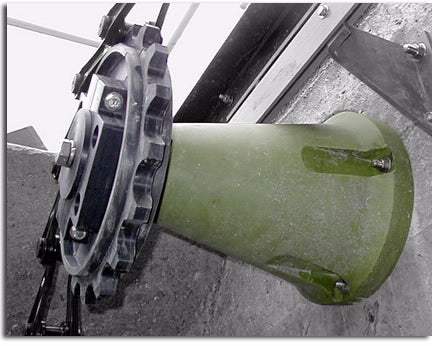

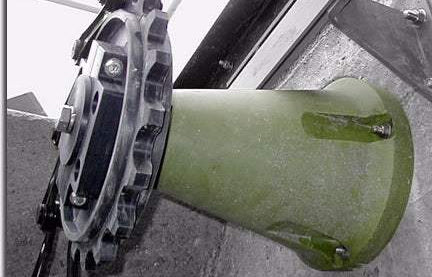

This 12" stub shaft is manufactured out of cast nylon and eliminates steel idler shafting by replacing the metallic wall bearings and heavy steel shafts with high strength cast nylon stub shafts. The key to cast nylon stub shafts are their unique design and a one piece casting, this creates integral strength and extended durability. Due to the materials natural properties, stub shafts do not require lubrication and are highly resistant to deflection under load and UV inhibited to ensure a long working life and trouble free operation. For more information or to get a quote on a 12" stub shaft please contact us and we will be happy to assist you.

Dimensions:

Stub Shaft Size: 12"
Material: Cast Nylon
Base Plate Diameter (D): 11-1/2"
Overall Length (L): 17-1/4"
Wall to Centerline Sprocket (C): 12"
Base Length (B): 7"
Spindle Length (L2): 10-1/4"
Spindle Diameter: 4"
