Roller Chain > More Roller Chains > Hollow Pin Roller Chain > Specialty Hollow Pin Chains

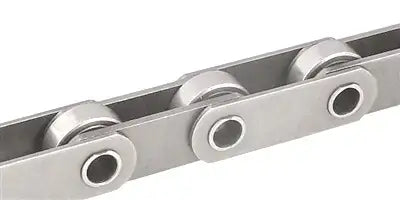

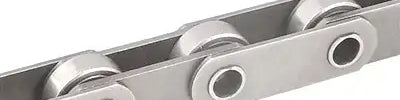

SSC2049 Stainless Steel Hollow Pin Roller Chain
Note:
Custom Cut to Length Chain Also Available
SKU: SSC2049-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
SSC2049 Stainless Steel Hollow Pin Roller Chain Features
SSC2049 Stainless Steel Hollow Pin Roller Chain Specifications
Chain Size: SSC2049 Pitch (P): 25.40 mm Roller Diameter (Dr): 15.88 mm Inside Width (W): 7.85 mm Plate Height (Hi): 12.07 mm Plate Thickness (S): 1.53 mm Pin Outside Diameter (Dp): 5.56 mm Pin Inside Diameter (Df): 4.01 mm Pin Width (A1): 16.80 mm Overall Width (B): 21.20 mm Average Ultimate Strength: 10.04 kN Average Weight: 0.76 Kg/m
Email:
Chain Size: SSC2049 Pitch (P): 25.40 mm Roller Diameter (Dr): 15.88 mm Inside Width (W): 7.85 mm Plate Height (Hi): 12.07 mm Plate Thickness (S): 1.53 mm Pin Outside Diameter (Dp): 5.56 mm Pin Inside Diameter (Df): 4.01 mm Pin Width (A1): 16.80 mm Overall Width (B): 21.20 mm Average Ultimate Strength: 10.04 kN Average Weight: 0.76 Kg/m
