FC-S2-300R Bearing | SFC-3T Pillow Block Bearing

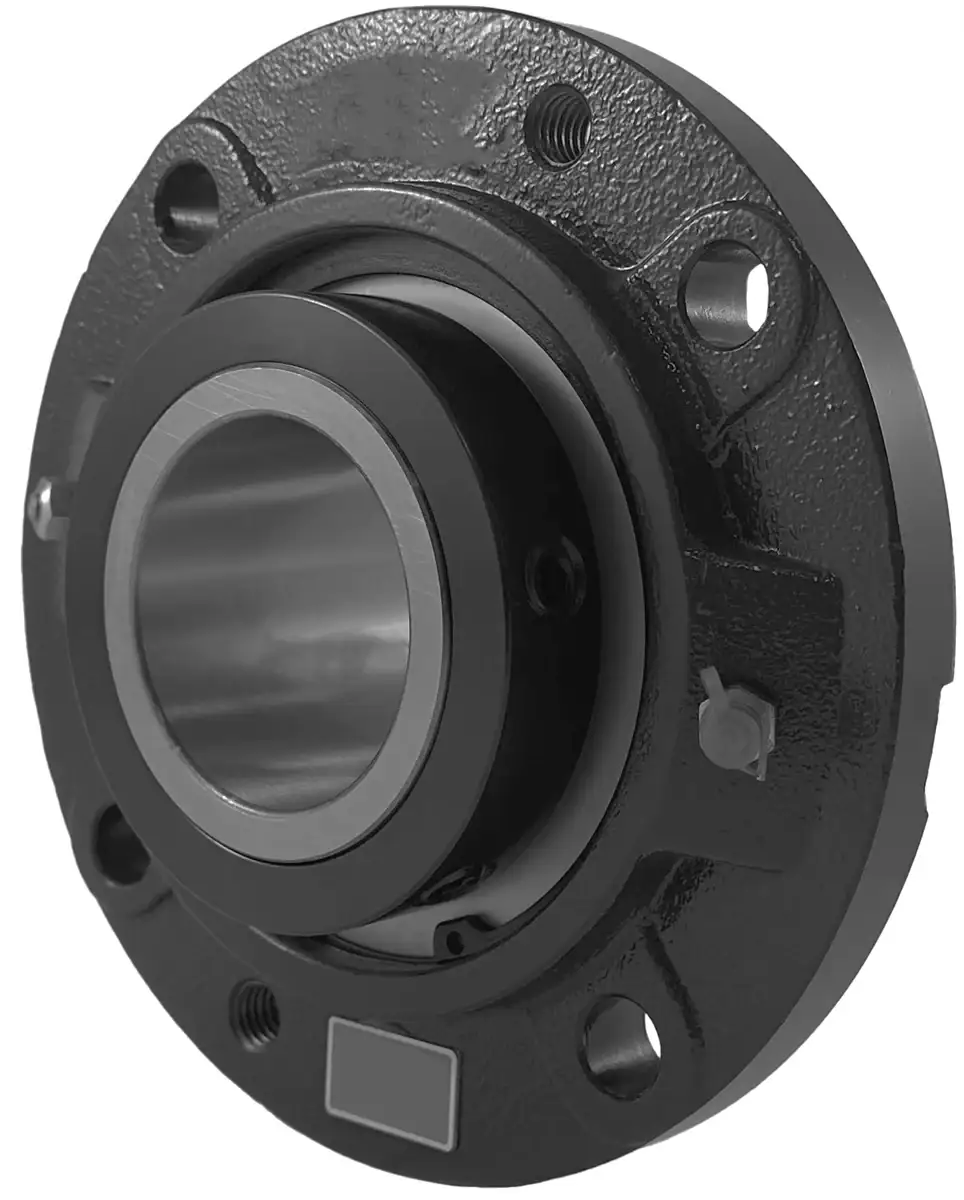

FC-S2-300R bearing is a spherical 4-bolt flange cartridge bearing unit with a 3" bore. Our directly interchanged SFC-3T bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. The housing features threaded removal holes "S" along with pry slots to remove the unit easily. FC-S2-300R bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an FC-S2-300R interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, the unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SFC-3T bearings interchange with other brands such as Dodge FC-S2-300R, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our SFC-3T bearing replacement, contact our customer service team, and we will be happy to assist you!

SFC-3T Bearing Dimensions

• Part #: SFC-3T
• Interchanges With: FC-S2-300R
• Weight: 21.76 LBS
• Dimension (d): 3"
• Dimension (P): 7.500"
• Dimension (A): 8.750"
• Dimension (Z): 3.906"
• Dimension (J): 2.031"
• Dimension (BL): 3.625"
• Dimension (F): 6.375"
• Dimension (K): 4.500"
• Dimension (G): 0.688"
• Bolt Hole (T): 0.750"
• Removal Hole QTY: 2
• Removal Hole Size (S): 5/8-11 UNC"
• Dynamic Load Capacity (Cr): 41,590 LBS
• Dynamic Load Capacity (Cr): 185.0 kN
• Static Load Capacity (Cor): 53,050 LBS
• Static Load Capacity (Cor): 236.0 kN
