FC-S2-204R Bearing | SFC-2-1/4T Pillow Block Bearing

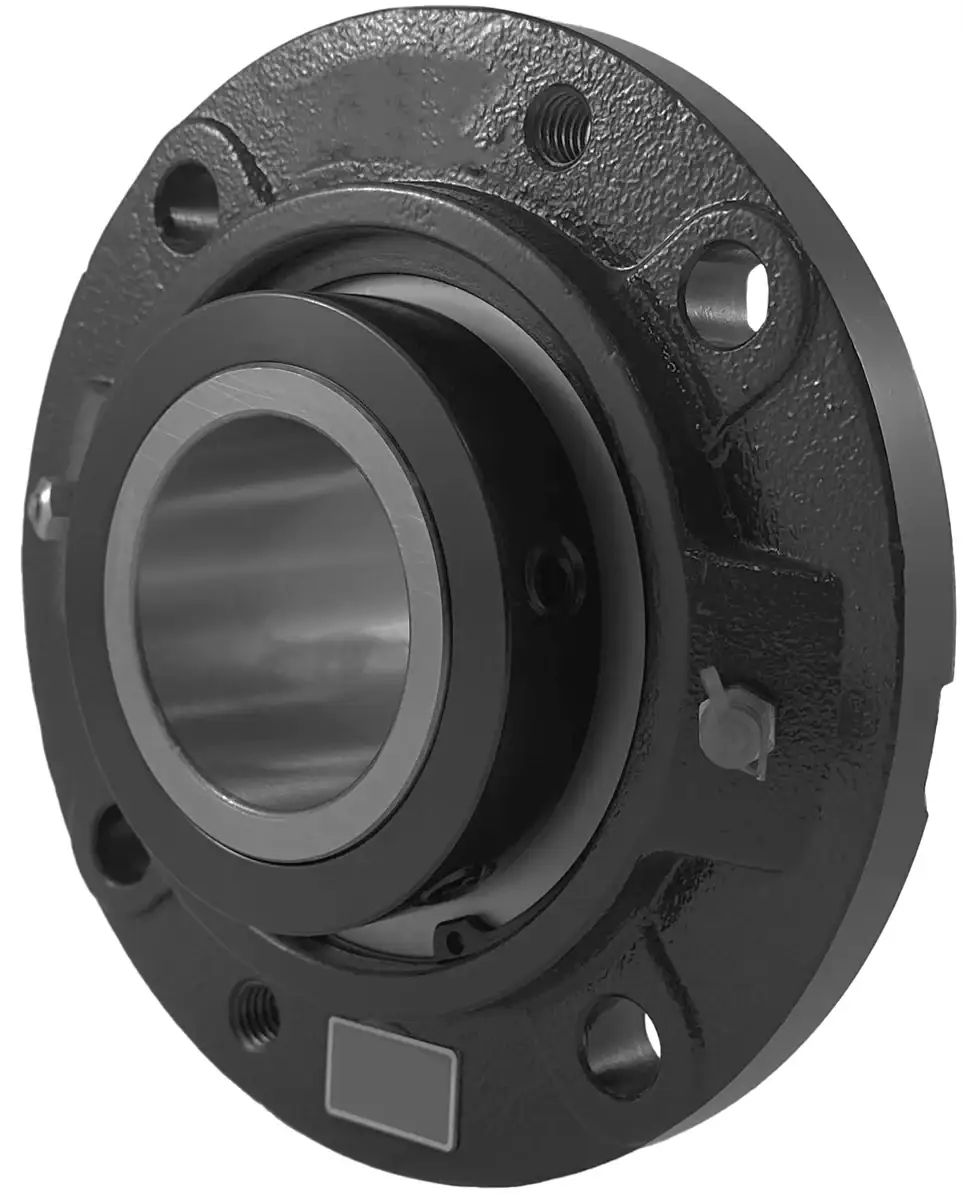

FC-S2-204R bearing is a spherical 4-bolt flange cartridge bearing unit with a 2-1/4" bore. Our directly interchanged SFC-2-1/4T bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. The housing features threaded removal holes "S" along with pry slots to remove the unit easily. FC-S2-204R bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an FC-S2-204R interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, the unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SFC-2-1/4T bearings interchange with other brands such as Dodge FC-S2-204R, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our SFC-2-1/4T bearing replacement, contact our customer service team, and we will be happy to assist you!

SFC-2-1/4T Bearing Dimensions

• Part #: SFC-2-1/4T
• Interchanges With: FC-S2-204R
• Weight: 18.3 LBS
• Dimension (d): 2-1/4"
• Dimension (P): 6.000"
• Dimension (A): 7.125"
• Dimension (Z): 3.313"
• Dimension (J): 1.656"
• Dimension (BL): 3.125"
• Dimension (F): 5.000"
• Dimension (K): 3.250"
• Dimension (G): 0.563"
• Bolt Hole (T): 0.594"
• Removal Hole QTY: 2
• Removal Hole Size (S): 1/2-13 UNC"
• Dynamic Load Capacity (Cr): 23,600 LBS
• Dynamic Load Capacity (Cr): 105.0 kN
• Static Load Capacity (Cor): 28,325 LBS
• Static Load Capacity (Cor): 126.0 kN
