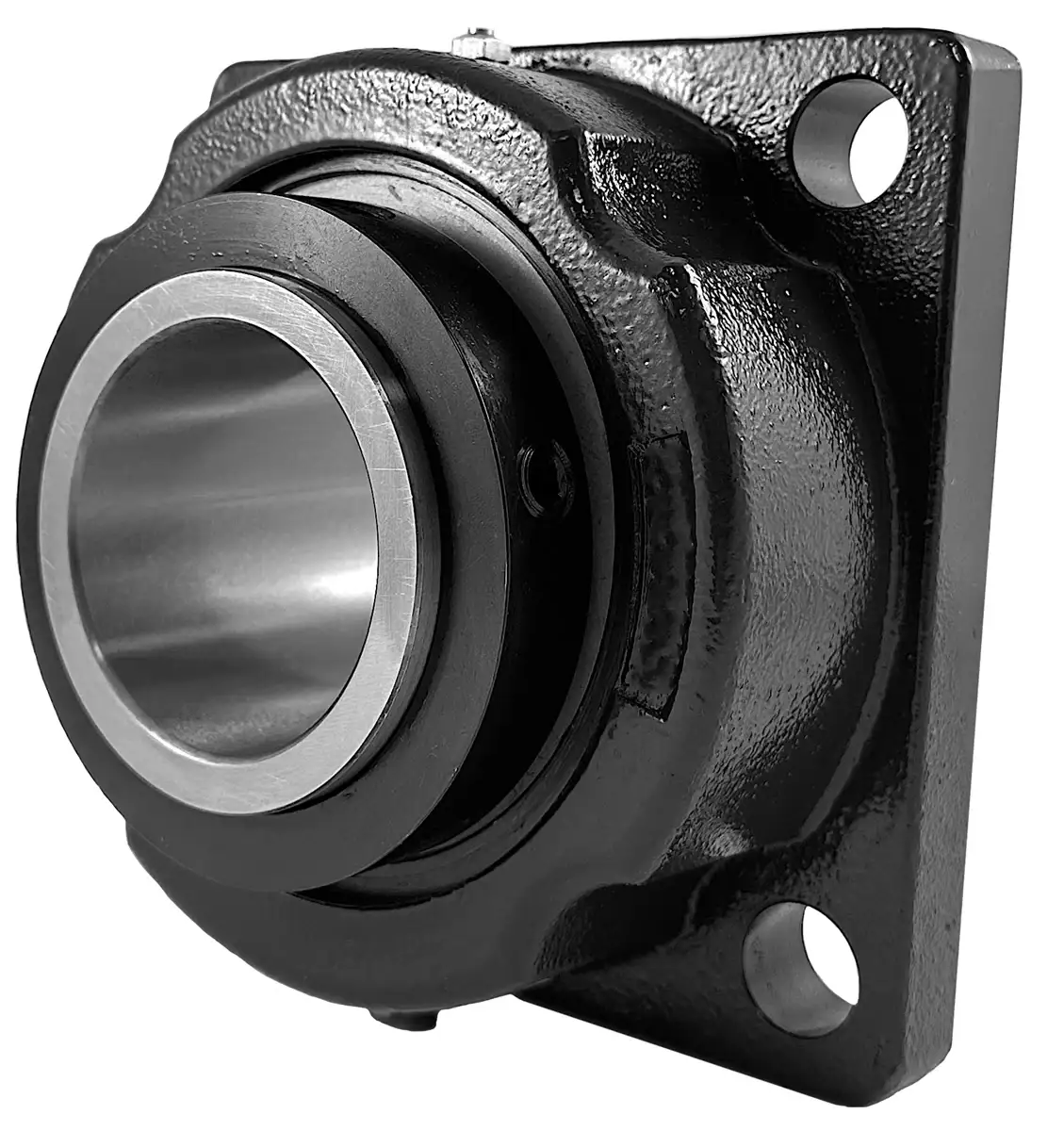

F4S-S2-208R Bearing | SFB4-2-1/2T Pillow Block Bearing

F4S-S2-208R Bearing bearing is a four-bolt spherical pillow block bearing unit with a 2-1/2" bore. Our directly interchanged SFB4-2-1/2T pillow block bearing boasts superior construction and durability compared to other Type-E class bearing lineup bearings. The high-strength, perfectly casted housing encompasses a precision spherical roller bearing with impressive dynamic and static load capacities. F4S-S2-208R Bearing bearings are utilized in some of the most demanding heavy-equipment and industrial applications worldwide; because of this, we provide an SFB4-2-1/2T interchange built to last in even the most demanding applications. Diving more into the details, this bearing features advanced PTFE seals capable of high speeds, high temperatures, and a labyrinth design that thwarts moisture and contaminants. Additionally, the unit has a high-strength mild steel collar for improved set screw grip and toughness, with a self-aligning precision roller bearing to accommodate application misalignment. With respect to the sturdy one-piece housing, the foot ends are precisely machined for perfect alignment when used within a guide rail. Finally, each bearing is fixed with a metal ID tag for ease of re-ordering. Our SFB4-2-1/2T bearings interchange with other brands such as Dodge F4S-S2-208R, FYH, Link-Belt, Rexnord, Sal Master, SKF, and Timken. For additional information or to get a quote on our F4S-S2-208R bearing replacement, contact our customer service team, and we will be happy to assist you!

SFB4-2-1/2T Bearing Dimensions

• Part #: SFB4-2-1/2T
• Interchanges With: F4S-S2-208R
• Weight: 15.5 LBS
• Dimension (d): 2-1/2"
• Dimension (A): 6.125"
• Dimension (E): 4.781"
• Dimension (C): 0.172"
• Dimension (P): 6.750"
• Dimension (Z): 3.547"
• Dimension (L): 2.656"
• Dimension (BL): 3.375"
• Dimension (B): 5.570"
• Dimension (K): 4.000"
• Dimension (G): 1.031"
• Bolt Hole (T): 0.709"
• Dynamic Load Capacity (Cr): 37,630 LBS
• Dynamic Load Capacity (Cr): 167.4 kN
• Static Load Capacity (Cor): 46,960 LBS
• Static Load Capacity (Cor): 208.9 kN
