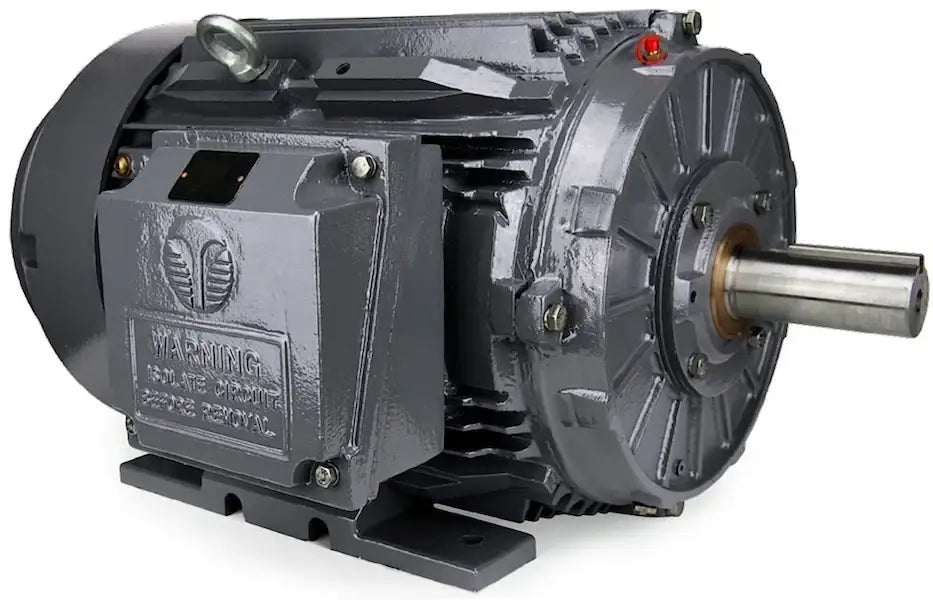

100 HP Severe Duty Motor 1200 RPM, Rigid Base, Roller Bearing

This 100 HP severe-duty motor is intended for some of the world's most rugged and demanding electric motor applications. More specifically, the SD3-444T-6-RR-E-100 motor has a rigid base, is 1200 RPM, and utilizes a 444T frame size and high-strength roller bearings. This 100-horsepower severe duty motor is made per IEEE 841 Standards, which means that the motor contains special features designated by the Institute of Electrical and Electronic Engineers to improve reliability, efficiency, and performance. This top-of-the-line 100 HP motor is also equipped with labyrinth seals, internal shaft grounding, class H silicone lead wires with fiberglass protectants, sintered brass breathers, and grease pressure reliefs. Putting this rigid base 444T 1200 RPM 100 HP electric motor above others within the same class! For more information or a quote on our premium SD3-444T-6-RR-E-100 severe duty motor, contact our customer service team, and we will gladly assist you!

100 HP Severe Duty Motor Specs

• Part Number: SD3-444T-6-RR-E-100
• Horsepower: 100
• Frame size: 444T
• RPM: 1200
• Poles: 6
• Voltage: 460V
• Body: T-Frame

- Download Drawing

- Download Spec Sheet
