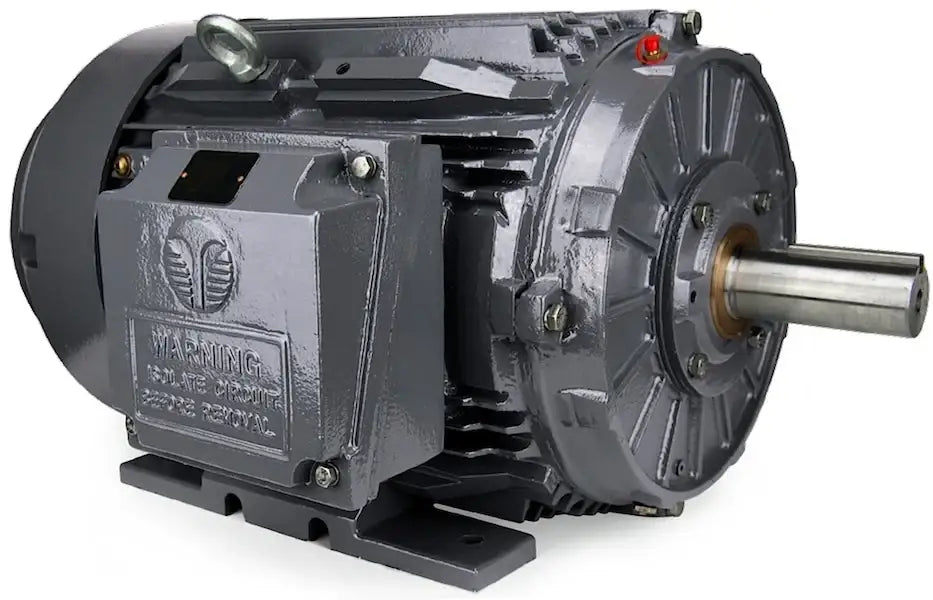

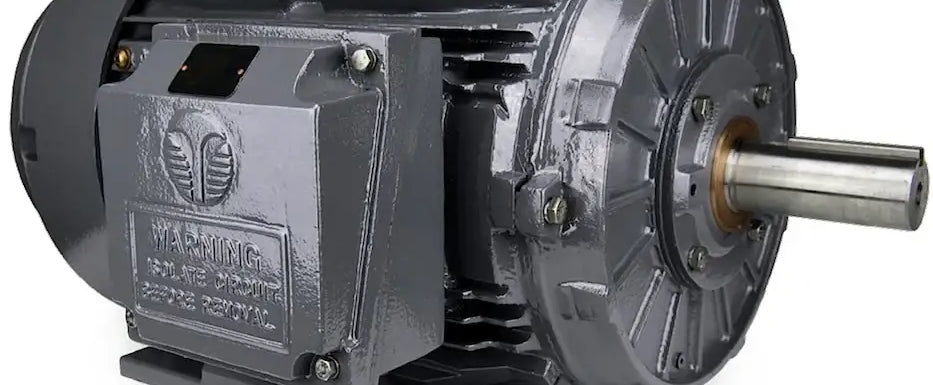

60 HP Severe Duty Motor 1200 RPM, Rigid Base, 404T Frame

This 60 HP severe-duty motor is intended for some of the world's most rugged and demanding electric motor applications. More specifically, the SD3-404T-6-RR-E-60 motor has a C-Face, is 1200 RPM, and utilizes a 404T frame size and high-strength ball bearings. This 60-horsepower severe duty motor is made per IEEE 841 Standards, which means that the motor contains special features designated by the Institute of Electrical and Electronic Engineers to improve reliability, efficiency, and performance. This top-of-the-line 60 HP motor is also equipped with labyrinth seals, internal shaft grounding, class H silicone lead wires with fiberglass protectants, sintered brass breathers, and grease pressure reliefs. Putting this C-Face 404T 1200 RPM 60 HP electric motor above others within the same class! For more information or a quote on our premium SD3-404T-6-RR-E-60 severe duty motor, contact our customer service team, and we will gladly assist you!

60 HP Severe Duty Motor Specs

• Part Number: SD3-404T-6-RR-E-60
• Horsepower: 60
• Frame size: 404T
• RPM: 1200
• Poles: 6
• Voltage: 460V
• Body: T-Frame

- Download Drawing

- Download Spec Sheet
