Power Transmission > Electric Motors > IEEE841 Severe Duty Motors

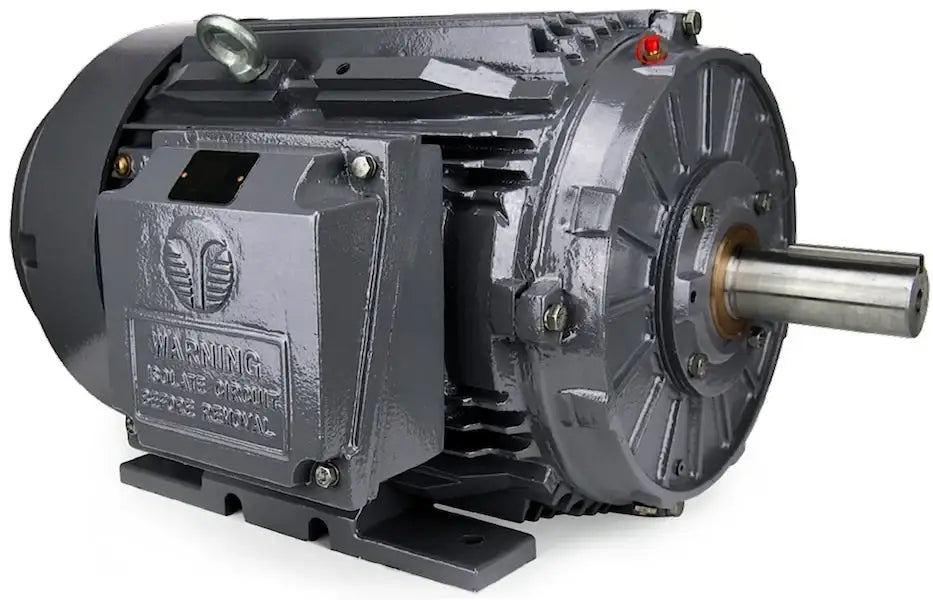

15 HP Severe Duty Motor 3600 RPM, C-Face, 254T Frame
Note:
Custom Cut to Length Chain Also Available
$1,979.99
SKU: SD3-254T-2-BR-E-15-C-FACE
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
15 HP Severe Duty Motor 3600 RPM, C-Face, 254T Frame Features
15 HP Severe Duty Motor 3600 RPM, C-Face, 254T Frame Specifications
This 15 HP severe-duty motor is intended for some of the world's most rugged and demanding electric motor applications. More specifically, the SD3-254T-2-BR-E-15 motor has a C-Face, is 3600 RPM, and utilizes a 254T frame size and high-strength ball bearings. This 15 horsepower severe duty motor is made per IEEE 841 Standards, which means that the motor contains special features designated by the Institute of Electrical and Electronic Engineers to improve reliability, efficiency, and performance. This top-of-the-line 15 HP motor is also equipped with labyrinth seals, internal shaft grounding, class H silicone lead wires with fiberglass protectants, sintered brass breathers, and grease pressure reliefs. Putting this C-Face 254T 3600 RPM 15 HP electric motor above others within the same class! For more information or a quote on our premium SD3-254T-2-BR-E-15 severe duty motor, contact our customer service team, and we will gladly assist you!
15 HP Severe Duty Motor Specs
- Part Number: SD3-254T-2-BR-E-15
- Horsepower: 15
- Frame size: 254T
- RPM: 3600
- Poles: 2
- Voltage: 460V
- Body: T-Frame
- Part Number: SD3-254T-2-BR-E-15
- Horsepower: 15
- Frame size: 254T
- RPM: 3600
- Poles: 2
- Voltage: 460V
- Body: T-Frame
