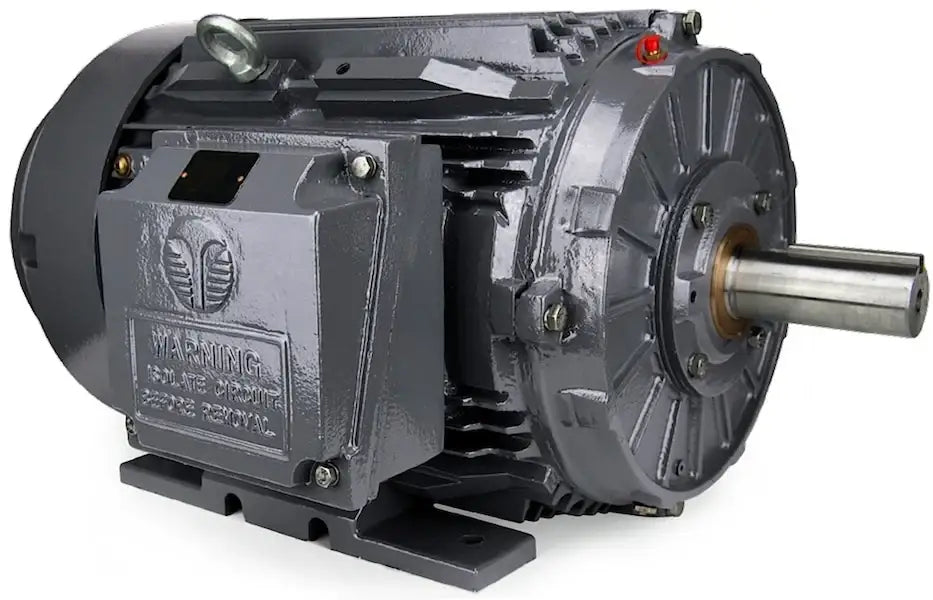

1 HP Severe Duty Motor 1800 RPM, Rigid Base, 143T Frame

This 1 HP severe-duty motor is intended for some of the world's most rugged and demanding electric motor applications. More specifically, the SD3-143T-4-BR-E-1 motor has a rigid base, is 1800 RPM, and utilizes a 143T frame size and high-strength ball bearings. This 1 horsepower severe duty motor is made per IEEE 841 Standards, which means that the motor contains special features designated by the Institute of Electrical and Electronic Engineers to improve reliability, efficiency, and performance. This top-of-the-line 1 HP motor is also equipped with labyrinth seals, internal shaft grounding, class H silicone lead wires with fiberglass protectants, sintered brass breathers, and grease pressure reliefs. Putting this rigid base 143T 1800 RPM 1 HP electric motor above others within the same class! For more information or a quote on our premium SD3-143T-4-BR-E-1 severe duty motor, contact our customer service team, and we will gladly assist you!

1 HP Severe Duty Motor Specs

• Part Number: SD3-143T-4-BR-E-1
• Horsepower: 1
• Frame size: 143T
• RPM: 1800
• Poles: 4
• Voltage: 460V
• Body: T-Frame

- Download Drawing

- Download Spec Sheet
