SD23 Chain Features
SD23 Chain Specifications

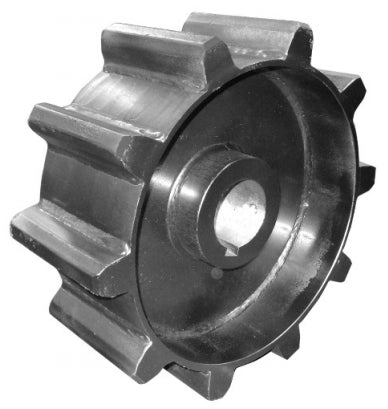

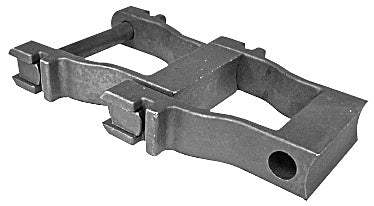

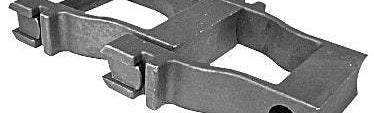

SD23 Chain is considered a cast alloy drag chain and features an ultimate strength of 172,800 LBS. This SD23 cast alloy drag chain is extremely high-strength, heavy duty, and anti abrasive due to the common applications it is placed in. Besides the chain we also have a full line of SD23 sprockets, motors, gear boxes, bearings, and more. For more information or to get pricing and availability please contact us and we will be happy to assist you.

Dimensions:

  • Chain Size: SD23
  • Style: SD
  • Pitch (A): 9.000"
  • Weight: 41.8 LBS/ FT
  • Weight Per Pin: 4.2 LBS
  • Average Ultimate Strength: 172,800 LBS
  • Recommended Working Load: 23,400 LBS
  • Barrel Length (B): 8.44"
  • Sidebar Width (C): 2.50"
  • Pin Diameter (D): 1.25"
  • Maximum Sprocket Width (E): 5.75"
  • Pin Head to Center Line (G): 6.00"
  • Pin End to Center Line (H): 6.00"
