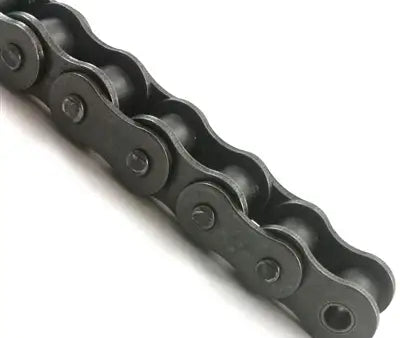

S52 Roller Chain
Note:
Uses Heat-Treated Components
SKU: S52-ROLLER-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Buy it With:
S52 Roller Chain Description/Features
S52 Roller Chain Specifications
SS52 roller chain is a non-ANSI Standard S-Class chain that is manufactured for light to medium duty industrial applications. Our S52 chain is manufactured with heat-treated components for better durability and long-term performance, it is also supplied with a high-quality chain lube from the factory. Typically these chains come in 10ft boxes, 100ft reels, 250ft reels, or 500ft reels but custom lengths can be ordered upon request. We also supply a full line of high-quality S52 chain sprockets and accessories. For additional information or to get a quote please contact us.
S52 Chain Dimensions
- Chain Size: S52
- Pitch (P): 0.625"
- Roller Diameter (D): 0.400"
- Roller Width (W): 0.252"
- Link Plate Height (H): 0.591"
- Link Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Pin Length (A): 0.673"
- Tensile Strength: 7,165 LBS
- Maximum Working Load: 1,389 LBS
- Weight: 0.638 LBS/ FT
- Chain Size: S52
- Pitch (P): 0.625"
- Roller Diameter (D): 0.400"
- Roller Width (W): 0.252"
- Link Plate Height (H): 0.591"
- Link Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Pin Length (A): 0.673"
- Tensile Strength: 7,165 LBS
- Maximum Working Load: 1,389 LBS
- Weight: 0.638 LBS/ FT
