S5157 Chain (Drag Chain)

S5157 Chain (Drag Chain)

Note: Custom Cut to Length Chain Also Available
Product Code: S5157-CHAIN
Shipping calculated at checkout.
Other Customers Viewed

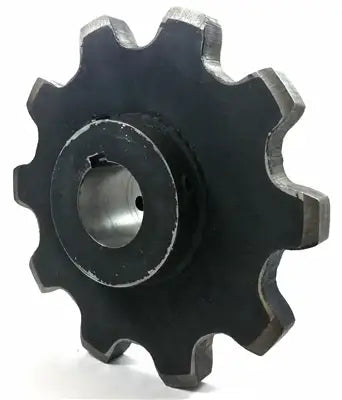

S5157 Chain Sprocket
S5157 Chain Sprocket
Login
View full details
Description
Specification
S5157 chain is a cast steel drag chain that is manufactured for heavy-duty conveyor applications and features a 18,200 LB working load. S5157 chain is commonly found in cement manufacturing, hot lime, and bulk material handling applications. Something that is notable about this chain is the plow shaped barrel, wings, sidebars, and the T-Head induction hardened pins. The plow shape design is reflected in each aspect of the complete link including the barrel, wings, and sidebars; this greatly improves the handling efficiency of material. Induction hardening the pins greatly increases the wear life, durability, and strength of the chain. There is also sidebar lags to protect the pin against abrasion and locks the pin in place at the same time to prevent pin rotation.

Dimensions:
S5157 Chain (Drag Chain)
  • Chain Size: S5157
  • Pitch: 6.050"
  • Recommended Working Load: 18,200 LBS
  • Pin Length (F): 6.94"
  • Length of Bearing (B): 4.63"
  • Maximum Sprocket Face (E): 2.75"
  • Wing and Sidebar thickness (C): 0.63"
  • Sidebar Height (G): 2.50"
  • Pin Diameter (D): 1.30"
  • Common Flight Widths: 8" - 14"
  • Weight Per Foot: 25 LBS - 31 LBS


Hard surfacing is available upon request; this increases the wear life of the chain. We also offer a full line of S5157 sprockets and this chain in a steel fabricated construction, stainless steel material, and alloy manganese material at a very competitive request. For more information or to get a quote please contact us and we will be happy to assist you.

Phone: (407) 347-3519

Feature

  • Extremely High-Strength
  • Cast Steel Construction
  • Plow Shape Design For Best Handling Efficiency
  • Induction Hardened Pins For Increased Working Life
  • Hardened Surfacing Available Upon Request
Featured image
  • Chain Size: S5157
  • Pitch: 6.050"
  • Recommended Working Load: 18,200 LBS
  • Pin Length (F): 6.94"
  • Length of Bearing (B): 4.63"
  • Maximum Sprocket Face (E): 2.75"
  • Wing and Sidebar thickness (C): 0.63"
  • Sidebar Height (G): 2.50"
  • Pin Diameter (D): 1.30"
  • Common Flight Widths: 8" - 14"
  • Weight Per Foot: 25 LBS - 31 LBS
