S5121 Chain (Drag Chain)

Name: S5121 Chain (Drag Chain)
Brand: USA ROLLER CHAIN
SKU: S5121-CHAIN
Availability: InStock

Note: Custom Cut to Length Chain Also Available

SKU: S5121-CHAIN

Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Call to order

Don’t see what you need?

Call us

Buy it With:

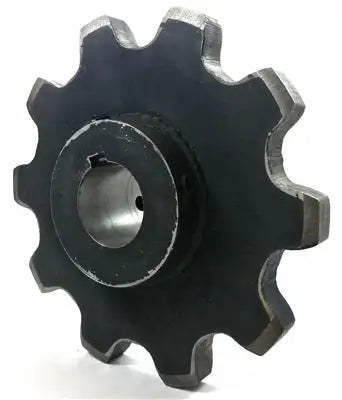

S5121 Chain Sprocket

S5121 Chain (Drag Chain) Features

S5121 Chain (Drag Chain) Specifications

S5121 chain is a cast steel drag chain that is manufactured for heavy-duty conveyor applications and features a 27,600 LB working load. S5121 chain is commonly found in cement manufacturing, hot lime, and bulk material handling applications. Something that is notable about this chain is the plow shaped barrel, wings, sidebars, and the T-Head induction hardened pins. The plow shape design is reflected in each aspect of the complete link including the barrel, wings, and sidebars; this greatly improves the handling efficiency of material. Induction hardening the pins greatly increases the wear life, durability, and strength of the chain. There is also sidebar lags to protect the pin against abrasion and locks the pin in place at the same time to prevent pin rotation.

Dimensions:

Chain Size: S5121
Pitch: 9.000"
Recommended Working Load: 27,600 LBS
Pin Length (F): 9.75"
Length of Bearing (B): 6.31"
Maximum Sprocket Face (E): 3.62"
Wing and Sidebar thickness (C): 1.12"
Sidebar Height (G): 2.50"
Pin Diameter (D): 1.25"
Common Flight Widths: 10" - 30"
Weight Per Foot: 40 LBS - 57 LBS

Hard surfacing is available upon request; this increases the wear life of the chain. We also offer a full line of S5121 sprockets and this chain in a steel fabricated construction, stainless steel material, and alloy manganese material at a very competitive request. For more information or to get a quote please contact us and we will be happy to assist you.
