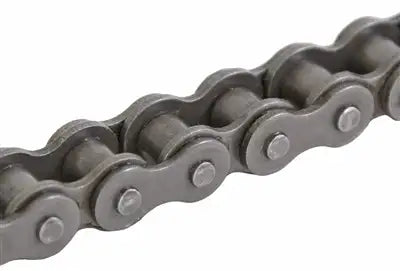

RE317 Chain (Metric Roller Chain)

Name: RE317 Chain (Metric Roller Chain)
Brand: USA ROLLER CHAIN
SKU: RE317-CHIAN
Availability: InStock

Note: Se habla espanol

SKU: RE317-CHIAN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

RE317 Chain (Metric Roller Chain) Description/Features

RE317 Chain (Metric Roller Chain) Specifications

RE317 chain is a metric roller chain that is primarily used in heavy-duty drive and lifting applications that require a high load roller chain. Due to the high quality and precision construction of the chain it offers a long service life and robust, economical operation. RE317 chain uses a high quality lubrication that makes the chain preform better and have less friction, in turn this reduces energy consumption and increases the wear life of the chain. Besides the chain, we also have a full line of RE317 sprockets as well as other PT and industrial components. For more information or to get a formal quote please contact us and we will be happy to assist you.

Dimensions:

Chain Size: RE317
Pitch: 15.875 mm
Width Between Inner Plates (b1): 6.48 mm
Roller diameter (d1): 10.16 mm
Pin Diameter (d2): 5.08 mm
Overall Inner Link Width (b2): 10.08 mm
Plate Height (g): 14.7 mm
Pin Length (a1): 16.0 mm
Locking Pin Length (a3): 20.0 mm
Average Tensile Strength: 23,600 N
Chain Weight: 0.8 kg/m
