40 X-Ring Roller Chain
SKU: RC-P-40LX-CHAIN
In stockOnly 0 left in stockBackordered
Out of stock
Item is unavailable
Contact Us For Pricing & Availability
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Buy it With:
40 X-Ring Roller Chain Description/Features
40 X-Ring Roller Chain Specifications

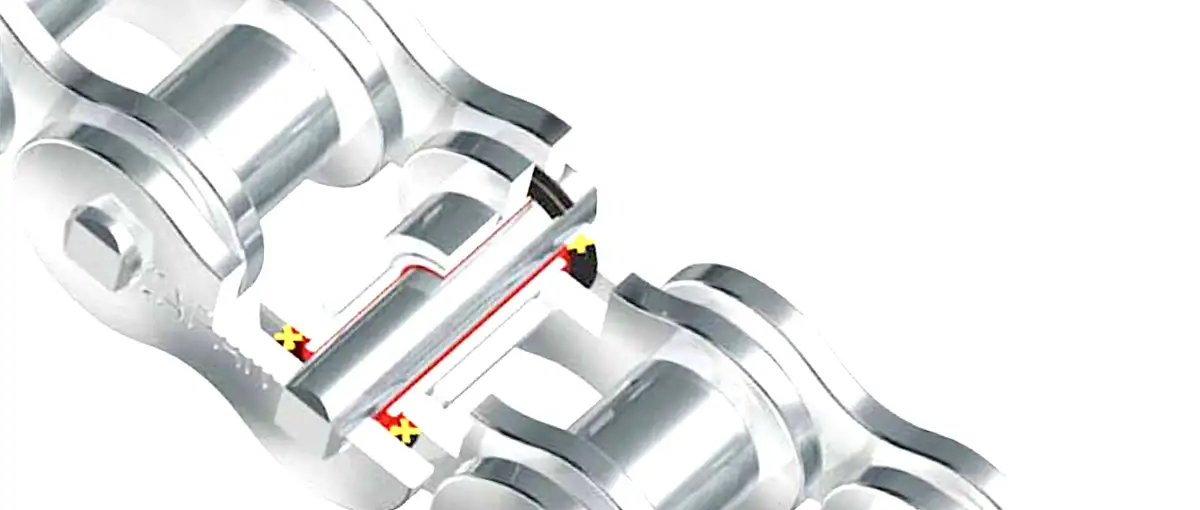

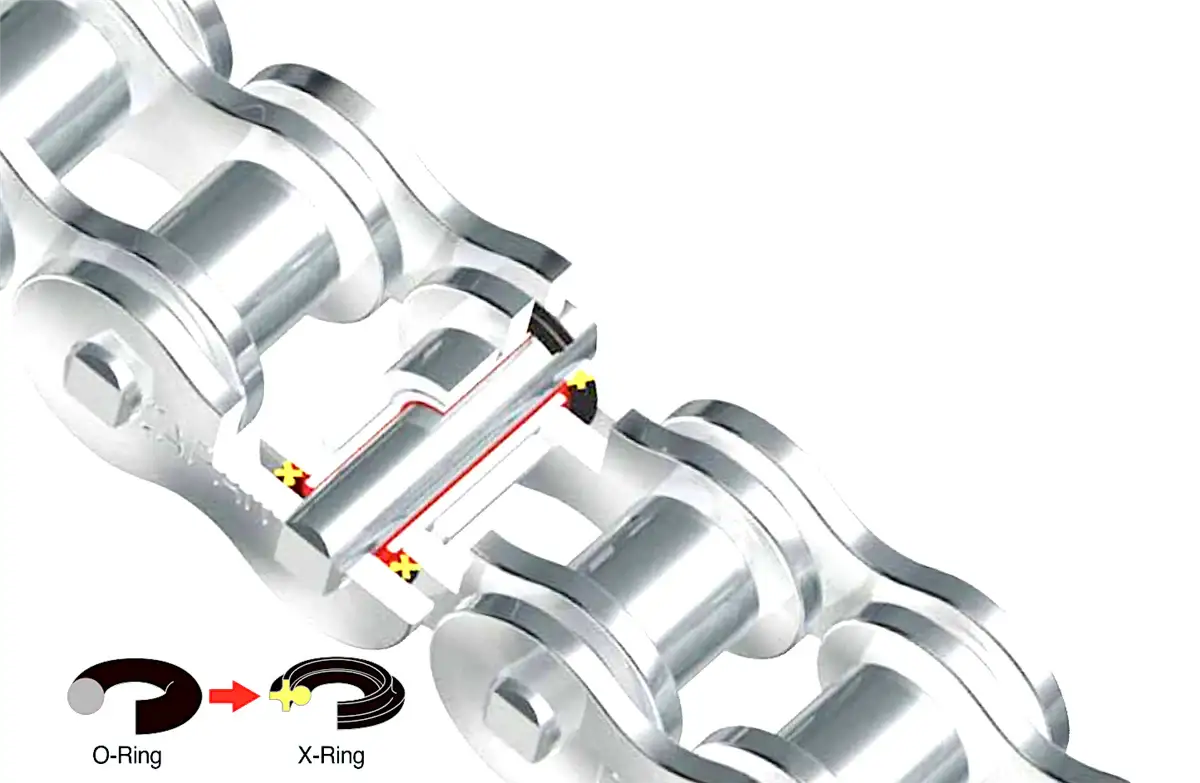

#40 X-ring roller chain is designed utilizing a special X-ring design that outperforms the older style 40 o-ring roller chain. These chains are dimensionally identical to o-ring chains so replacing the chain in existing applications is possible without adjustments. 40 X-Ring chain is also available in a "narrow" series for applications that do not have additional side clearance but requires a sealed chain. X-ring chains are classed as a maintenance free roller chain because they do not need continual lubrication and have minimal stretch over time. Additionally, 40 x-ring chain has lower vibration and noise ratings versus o-ring and standard roller chains! To get a quote or for additional information please contact us and we will be happy to assist you.
Chain Size: 40LX
Pitch (P): 12.70mm
Roller Width (W): 7.95mm
Roller Diameter (D): 7.92mm
Pin (d): 3.97mm
Pin (E): 20.0mm
Pin (F): 20.0mm
Pin (f): 10.7mm
Plate Thickness (T): 1.50mm
Outer Plate Height (H): 12.0mm
Inner Plate Height (h): 10.4mm
Average Tensile Strength: 18.1 kN (1,850 kgf)
Maximum Allowable Tension: 3.72 kN (380 kgf)
Weight: 0.67 kG/ M
40 X-Ring Roller Chain Dimensions
Chain Size: 40LX
Pitch (P): 12.70mm
Roller Width (W): 7.95mm
Roller Diameter (D): 7.92mm
Pin (d): 3.97mm
Pin (E): 20.0mm
Pin (F): 20.0mm
Pin (f): 10.7mm
Plate Thickness (T): 1.50mm
Outer Plate Height (H): 12.0mm
Inner Plate Height (h): 10.4mm
Average Tensile Strength: 18.1 kN (1,850 kgf)
Maximum Allowable Tension: 3.72 kN (380 kgf)
Weight: 0.67 kG/ M
Chain Size: 40LX
Pitch (P): 12.70mm
Roller Width (W): 7.95mm
Roller Diameter (D): 7.92mm
Pin (d): 3.97mm
Pin (E): 20.0mm
Pin (F): 20.0mm
Pin (f): 10.7mm
Plate Thickness (T): 1.50mm
Outer Plate Height (H): 12.0mm
Inner Plate Height (h): 10.4mm
Average Tensile Strength: 18.1 kN (1,850 kgf)
Maximum Allowable Tension: 3.72 kN (380 kgf)
Weight: 0.67 kG/ M
