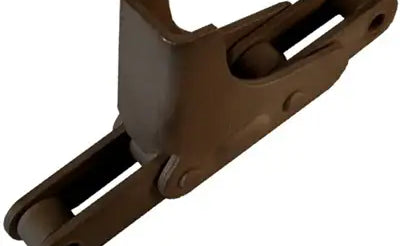

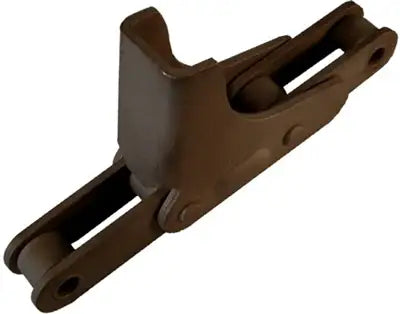

New Holland 851 Round Baler Chain - Floor Chain

This chain is a direct replacement for New Holland 851 round baler floor chain. We use a high-strength CA550 agricultural series chain that is manufactured using high-strength heat-treated precision components for the best performance and durability. The chain assemblies are made in matched and tagged pairs for smooth and even operation. A New Holland 851 round bailer uses 8 of these chain assemblies. We also supply sprockets and bearings for round hay balers.

851 Floor Chain Dimensions

• Chain Size: CA550
• Amount Of Links: 65
• Attachment Type: C5EB
• Attachment Spacing: 6.622"
• Amount of Attachments: 16
• Pitch (P): 1.630"
• Roller Width (W): 0.797"
• Roller Diameter (D): 0.656"
• Overall Width Riveted (C): 1.420"
• Overall Width Cottered: 1.563"
• Link Plate Height (H): 0.750"
• Link Plate Thickness (T): 0.105"
• Pin Diameter (E): 0.281"
• Ultimate Strength: 11,250 LBS

C5EB Attachment Dimensions

• Dimension (C): 1.484"
• Angle (R): 15 Degrees
• Dimension (S): 2.250"
• Dimension (T): 0.105"
