R2929 Chain | Traveling water screen chain

R2929 chain is categorized as a traveling water screen chain. The R2929 chain design makes it popular in many of today's wastewater treatment facilities because of its "over-sized" carrier rollers for easy movement and conveying, durable design operation, and high-strength nature. Traveling water screens certainly put the chain side of things to the test, this is why our R2929 chain is manufactured with premium materials and processes high tensile and working load capacities. We use heat-treated precision components and an extensive quality check (QC) process for each batch of R2929 chain. We also supply R2929 chain sprockets and custom attachments, to get a quote, please contact us, and we will be happy to assist you.

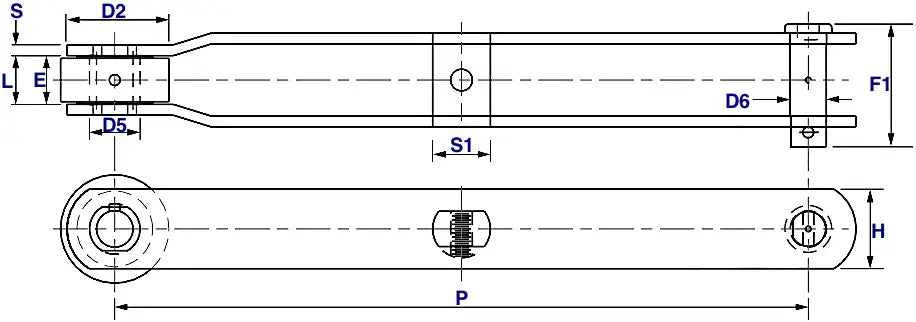

R2929 Chain Dimensions

• Chain Size: R2929
• Style: A
• Pitch (P): 24.00"
• Roller Diameter (D2): 3.75"
• Roller Width (E): 1.63"
• Bushing Diameter (D5): 1.75"
• Bushing Attachment Diameter (S1): 2.00"
• Pin Diameter (D6) 1.25"
• Width Between Sidebars (L): 1.69"
• Sidebar Height (H): 2.75"
• Sidebar Thickness (S): 0.38"
• Overall Width (F1): 4.25"
• Ultimate Tensile Strength: 66,000 LBS
• Weight: 12.3 LBS/ FT
