Premium C2080H Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

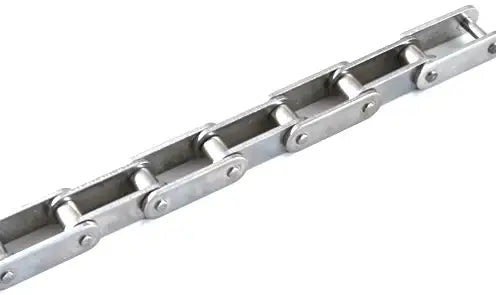

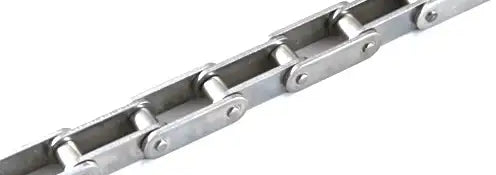

Premium C2080H stainless steel roller chain exceeds others in performance, lifespan, and quality! C2080H stainless chain has a 2" pitch, conforms to ANSI dimensional standards, and is a double-pitch conveyor series chain. This C2080HSS chain comprises high-precision components from superior 304-grade stainless steel alloy for exceptional corrosion and abrasion resistance. Additionally, the C2080H stainless chain can operate in various applications, including food-grade, abrasive, and corrosive, and temperatures ranging from -200 to +700 degrees Fahrenheit. Typically, we supply C2080HSS roller chains in 10ft boxes, including one connecting link (master link), but reel lengths of 50ft and 100ft are also available. Besides the plain chain, we stock C2080H stainless attachments, chain guides, and tools. For additional information or to get a quote on our premium C2080H stainless steel roller chain, contact our customer service team, and we will gladly assist you!
C2080H Stainless Steel Chain Dimensions
- Roller Chain Size: C2080HSS
- Chain Pitch (P): 2.000"
- Roller Width (R): 0.620"
- Roller Diameter (D): 0.625"
- Overall Width (W): 1.469"
- CL Overall Width (X): 1.669"
- Plate Height (H): 0.943"
- Pin Diameter (L): 0.311"
- Tensile Strength: 10,670 LBS
- Working Load: 396.8 LBS
- Weight: 1.67 LBS/ FT
- Roller Chain Size: C2080HSS
- Chain Pitch (P): 2.000"
- Roller Width (R): 0.620"
- Roller Diameter (D): 0.625"
- Overall Width (W): 1.469"
- CL Overall Width (X): 1.669"
- Plate Height (H): 0.943"
- Pin Diameter (L): 0.311"
- Tensile Strength: 10,670 LBS
- Working Load: 396.8 LBS
- Weight: 1.67 LBS/ FT
