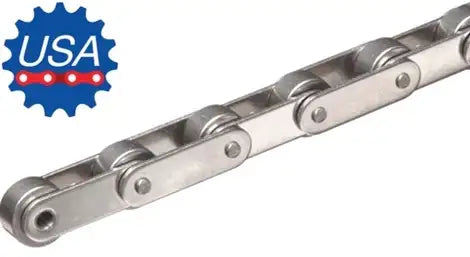

Premium C2062H Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Our premium C2062H stainless steel roller chain sets the bar for quality, performance, and chain life! This particular C2062H stainless chain is constructed with high-precision components made from superior alloy-quality 304-grade stainless steel. C2062HSS chain is a highly versatile chain size with a 1.5" pitch. It conforms to ANSI dimensional standards for interchangeability and features oversized rollers for effortless conveying across surfaces. The C2062H stainless chain is typically used for conveying applications within food-grade, abrasive, corrosive, high-heat, and low-temperature applications. We also supply C2062H stainless steel sprockets, chain guides, tools, and attachments. C2062HSS chain is standardly supplied as 10ft boxes, including one connecting link (master link), but reel lengths of 50ft or 100ft are also available. For more information or a quote on our premium C2062H stainless steel roller chain, contact our customer service team, and we will gladly assist you!
C2062H Stainless Steel Chain Dimensions
- Roller Chain Size: C2062HSS
- Chain Pitch (P): 1.500"
- Roller Width (R): 0.495"
- Roller Diameter (D): 0.875"
- Overall Width (W): 1.189"
- CL Overall Width (X): 1.354"
- Plate Height (H): 0.707"
- Pin Diameter (L): 0.234"
- Tensile Strength: 6,200 LBS
- Working Load: 231.5 LBS
- Weight: 1.46 LBS/ FT
- Roller Chain Size: C2062HSS
- Chain Pitch (P): 1.500"
- Roller Width (R): 0.495"
- Roller Diameter (D): 0.875"
- Overall Width (W): 1.189"
- CL Overall Width (X): 1.354"
- Plate Height (H): 0.707"
- Pin Diameter (L): 0.234"
- Tensile Strength: 6,200 LBS
- Working Load: 231.5 LBS
- Weight: 1.46 LBS/ FT
