Roller Chain > More Roller Chains > Long-Lasting O-Ring Roller Chain > C2060H O-Ring Roller Chain

Premium C2060H O-Ring Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
SKU: PREMIUM-C2060HOR-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

Call us

Buy it With:

 [{"variant_id":"51715333456239" , "metafield_value":""}]
Premium C2060H O-Ring Roller Chain - 10ft Box Features
Premium C2060H O-Ring Roller Chain - 10ft Box Specifications

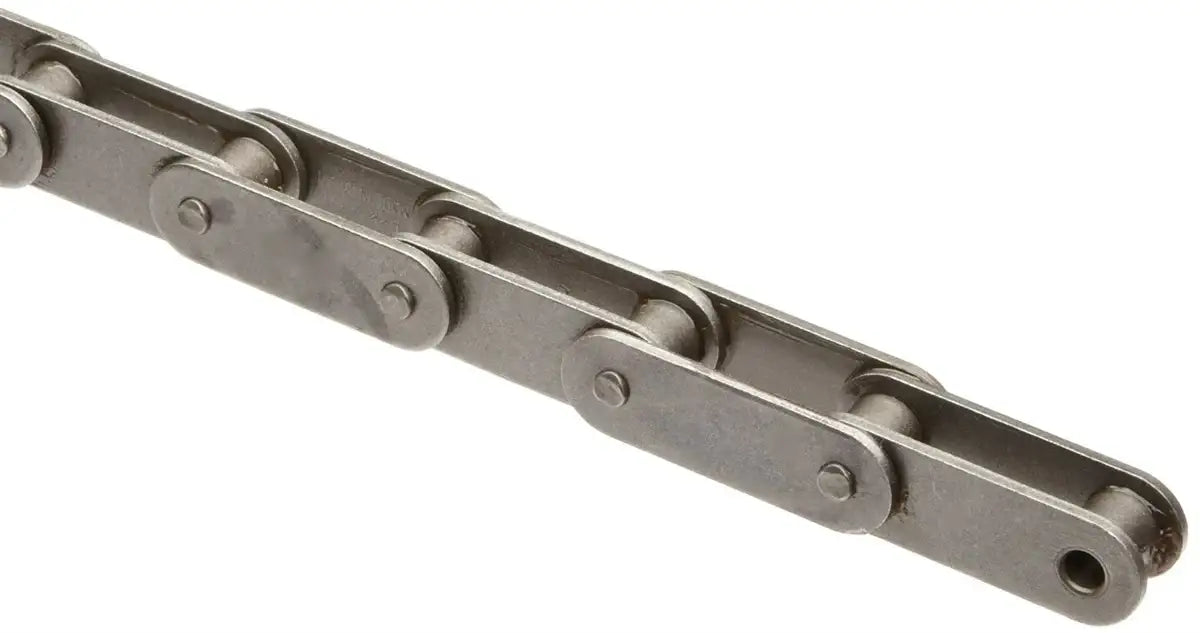

This Premium C2060H Double Pitch O-ring roller chain is a great upgrade for your application. O-ring chain has been tested and results have shown that O-ring chain can last up to 10 times longer than standard roller chain. The O-ring chain is named for the rubber O-rings built into the space between the outside link plate and the inside roller link plates. O-rings are included as a way to improve lubrication to the links of power transmission chains, a service that is vitally important to extending their working life. These rubber fixtures form a barrier that holds factory applied lubricating grease inside of the pin and bushing wear areas. Further, the rubber O-rings prevent dirt and other contaminants from entering the inside of the chain linkages, where such particles would otherwise cause significant wear. This O-Ring roller chain has heat treated & shot peened components that greatly extend the working life and strength of the chain. This chain is also constructed using high quality carbon steel and high quality O-Rings. O-ring chain fits in standard chain applications and will run on ANSI standard sprockets. From industrial to agriculture, our O-ring Series roller chain is designed to last longer than any standard roller chain. This chain will be supplied as a 10ft box including one connecting link.

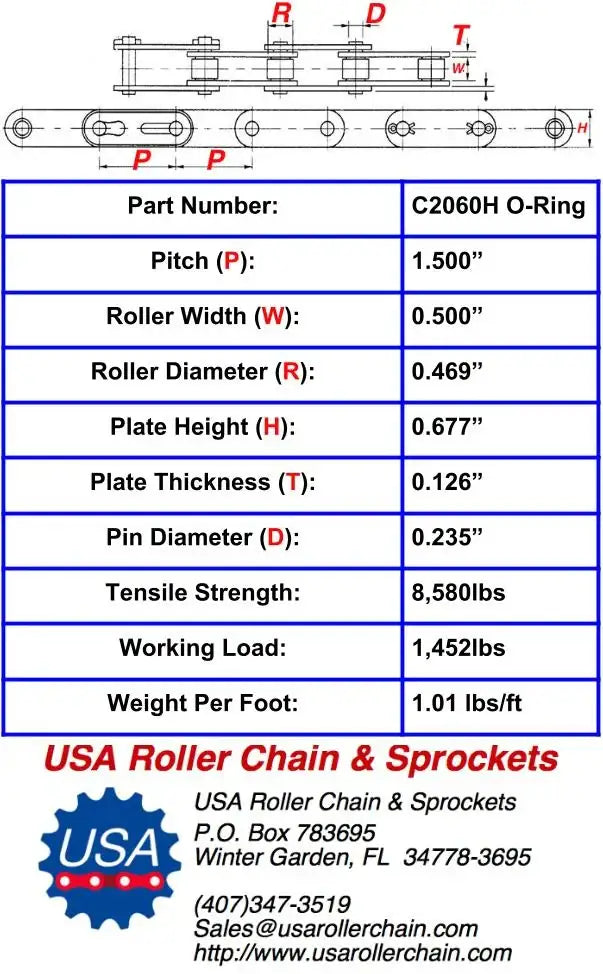

  • Chain Size: C2060H O-Ring Roller Chain
  • Note: All Dimensions Are Given In Inches
  • Tensile Strength: 8,580lbs
  • Working Load: 1,452lbs
  • Pitch (P): 1.500
  • Roller Width (W): 0.500
  • Roller Diameter (R): 0.469
  • Link Plate Height (H): 0.677
  • Link Plate Thickness (T): 0.126
  • Pin Diameter (D): 0.235
