Roller Chain > More Roller Chains > Long-Lasting O-Ring Roller Chain > C2042 O-Ring Roller Chain

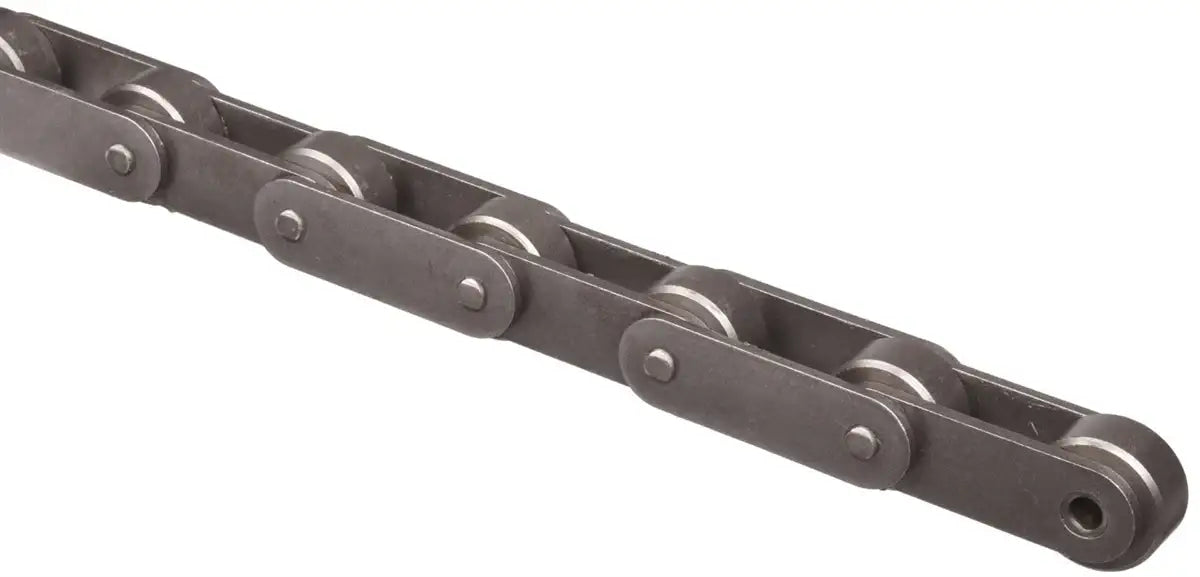

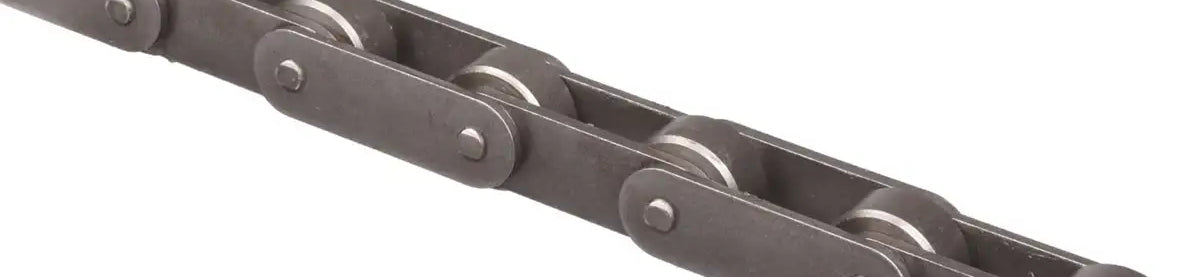

Premium C2042 O-Ring Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
SKU: PREMIUM-C2042OR-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium C2042 O-Ring Roller Chain - 10ft Box Features
Premium C2042 O-Ring Roller Chain - 10ft Box Specifications
This Premium C2042 Double Pitch O-ring roller chain with oversized rollers is a great upgrade for your application. O-ring chain has been tested and results have shown that O-ring chain can last up to 10 times longer than standard roller chain. The O-ring chain is named for the rubber O-rings built into the space between the outside link plate and the inside roller link plates. O-rings are included as a way to improve lubrication to the links of power transmission chains, a service that is vitally important to extending their working life. These rubber fixtures form a barrier that holds factory applied lubricating grease inside of the pin and bushing wear areas. Further, the rubber O-rings prevent dirt and other contaminants from entering the inside of the chain linkages, where such particles would otherwise cause significant wear. This O-Ring roller chain has heat treated & shot peened components that greatly extend the working life and strength of the chain. This chain is also constructed using high quality carbon steel and high quality O-Rings. O-ring chain fits in standard chain applications and will run on ANSI standard sprockets. From industrial to agriculture, our O-ring Series roller chain is designed to last longer than any standard roller chain. This chain will be supplied as a 10ft box including one connecting link.

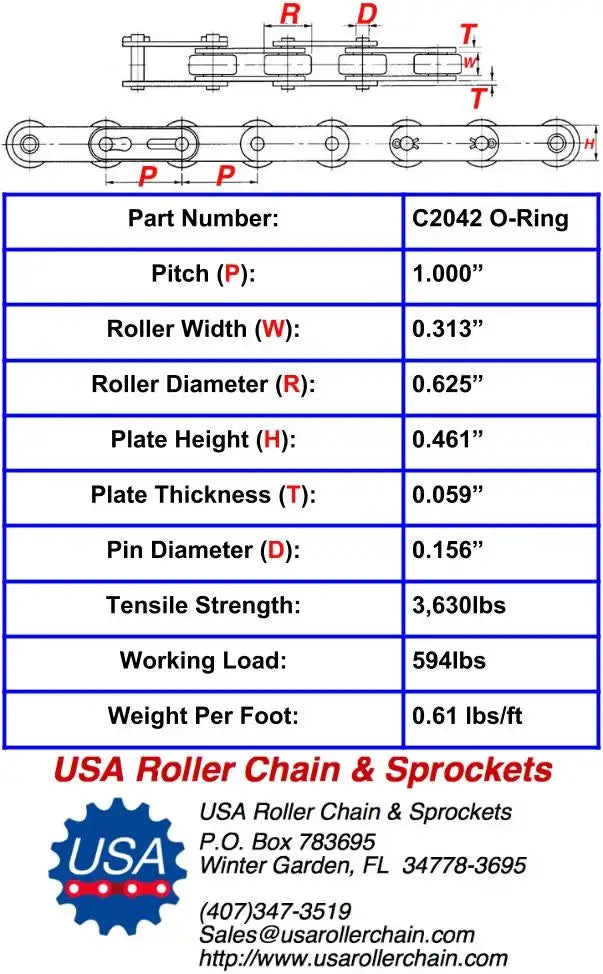

- Chain Size: C2042 O-Ring Roller Chain
- Note: All Dimensions Are Given In Inches
- Tensile Strength: 3,630lbs
- Working Load: 594lbs
- Pitch (P): 1.000
- Roller Width (W): 0.313
- Roller Diameter (R): 0.625
- Link Plate Height (H): 0.461
- Link Plate Thickness (T): 0.059
- Pin Diameter (D): 0.156
