Premium #120 Straight Sidebar Roller Chain - 10ft Box
Premium #120 Straight Sidebar Roller Chain - 10ft Box
Note:
Custom Cut to Length Chain Also Available
Regular price
$629.99
$629.99
Unit price
per
In Stock
On Sale
Sold out
Product Code: PREMIUM-C120-10FT
In Stock
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed

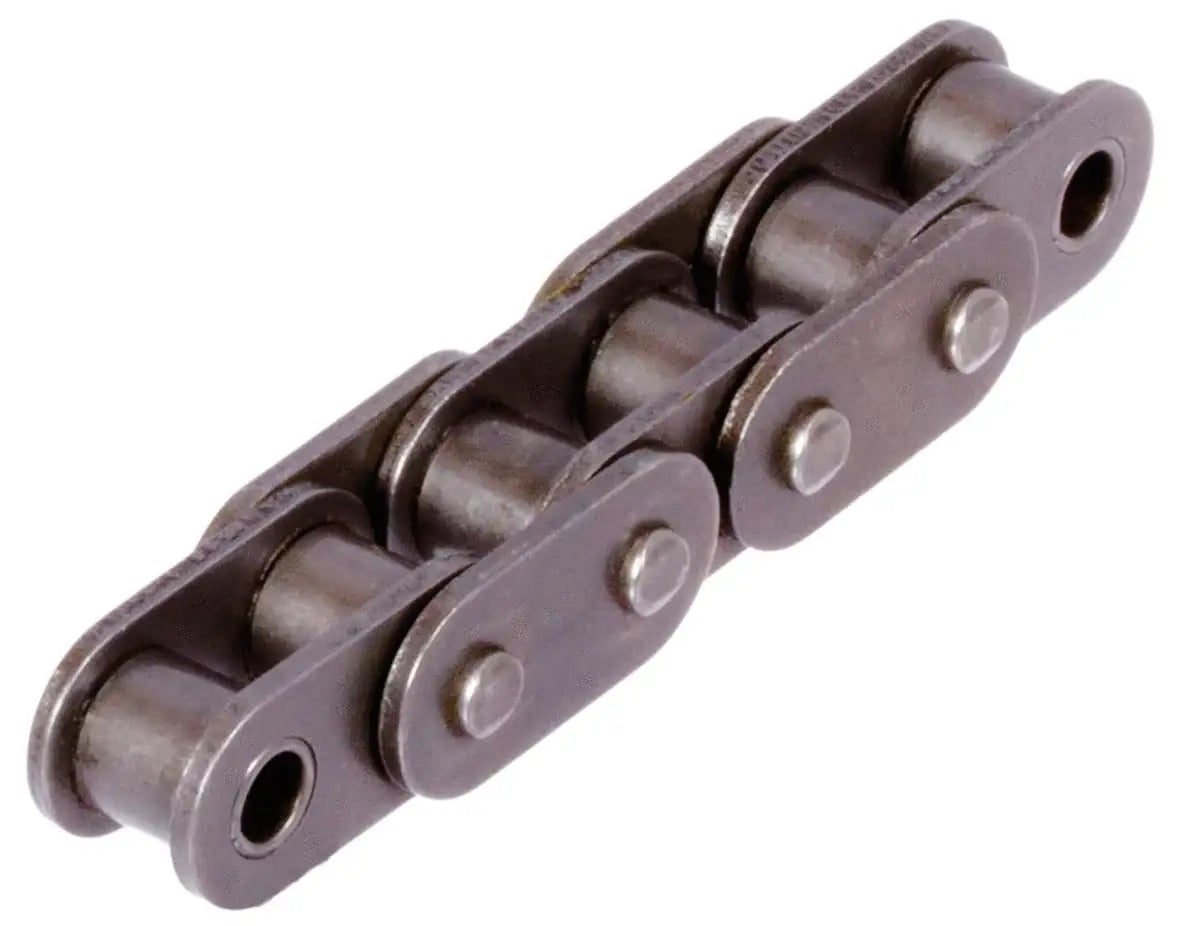

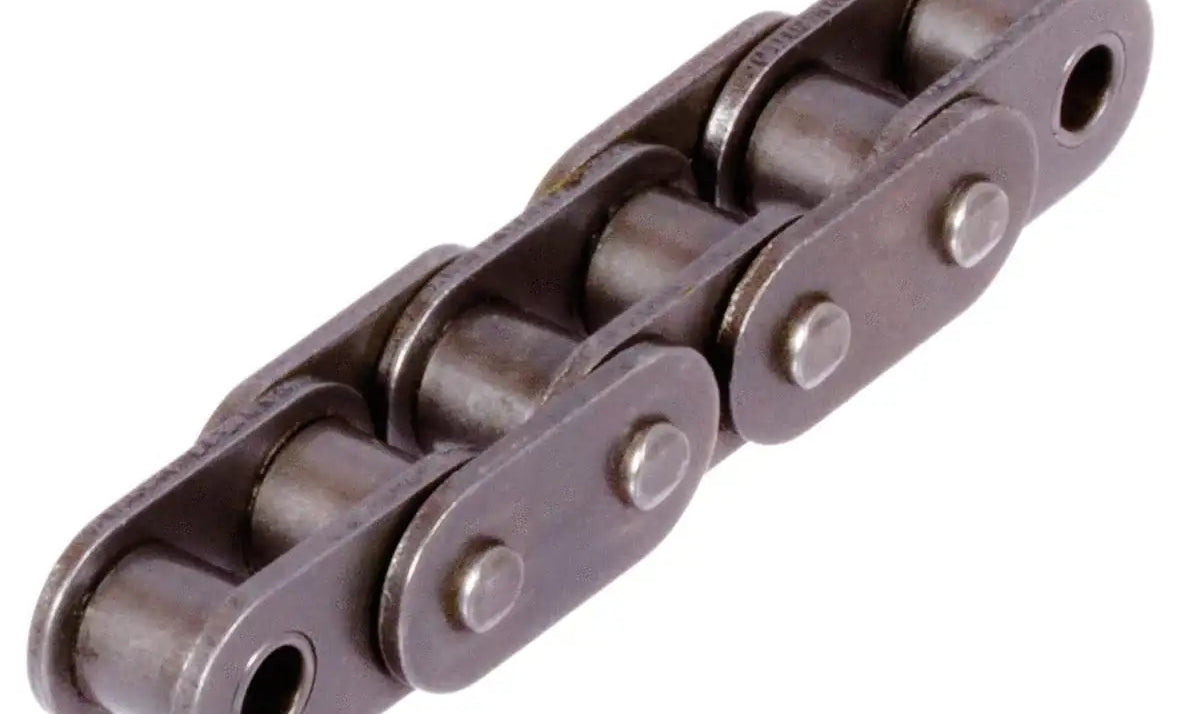

This Premium #120 straight sidebar roller chain is a high quality chain and has straight sidebars/ side plates instead of the standard curved/ figure 8 sidebars. Having straight sidebars slightly increases the strength, fatigue, and working life of the chain. What separates this chain from the others is that this chain has solid roller and solid bushing which greatly increases performance and strength. This chain has also been shot peened and manufactured using high quality carbon steel making this chain a premium quality roller chain. This chain offers maximum strength, wear life, and performance. This chain can run on ANSI #120 standard sprockets. Straight sidebar roller chains are commonly used in bottling, car washes, citrus processing, conveyors, material handling, packaging, poultry processing, refineries, seafood processing, and a wide range of other applications. This chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. USA Roller Chain & Sprockets also offers a full line of high quality sprockets for this chain. If you have any questions or are in need of a custom length please contact us.
Chain Size: #120 Straight Sidebar Roller Chain Tensile Strength: 37,400lbs Pitch (P): 1.500" Roller Width (W): 1.000" Roller Diameter (R): 0.875" Plate Height (H): 1.287" Plate Thickness (T): 0.187" Pin Diameter (D): 0.437" Overall Width (F): 1.990" Weight Per Foot: 4.104 lbs/FT
Email:
Feature
Size: #120 Premium Straight Sidebar Roller Chain Ultimate Strength: 37,400lbs Heat Treated For Increased Fatigue Solid Bushings & Rollers For Smooth Operation and Increased Strength and Working Life Has Maximum Strength & Longest Working Life Straight Sidebars Increase Strength, Working Life, and Fatigue Runs On Standard Sprockets High Strength & Premium Quality
Chain Size: #120 Straight Sidebar Roller Chain Tensile Strength: 37,400lbs **Note: All Dimensions Are in Inches** Pitch (P): 1.500 Roller Width (W): 1.000 Roller Diameter (R): 0.875 Plate Height (H): 1.287 Plate Thickness (T): 0.187 Pin Diameter (D): 0.437 Overall Width (F): 1.990 Weight Per Foot: 4.104 lbs/FT
