Premium #80 Cottered Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

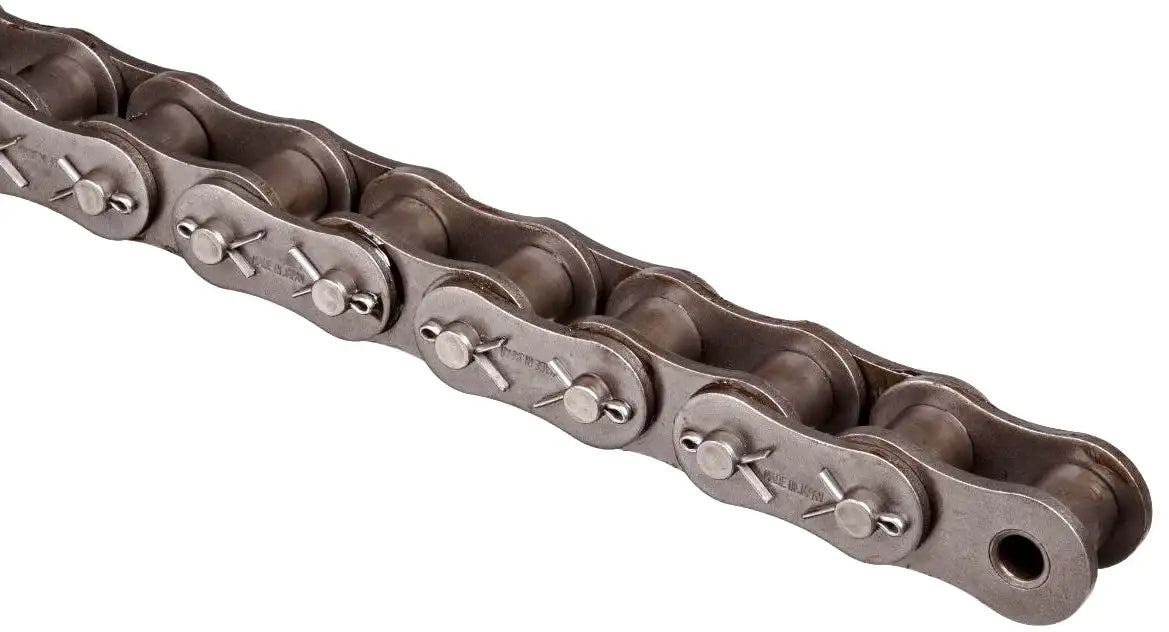

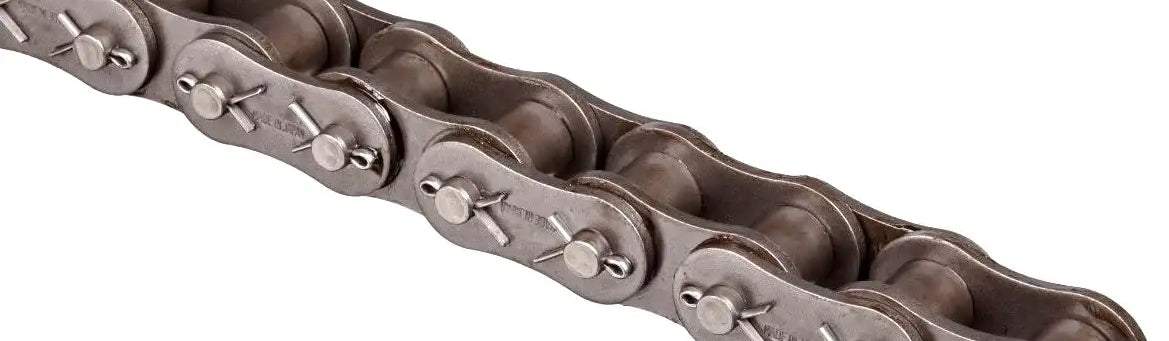

Premier Series #80 cottered roller chain is a Premium quality ANSI standard roller chain. This #80 cottered roller chain features heat-treated and shot peened components including the pins, side plates, rollers, and bushings. This #80 cottered roller chain has also been pre-stretched to reduce elongation during the working life of the chain; this helps things run more efficiently and for longer periods of time. Doing this to a roller chain greatly increases the strength, working life, and overall durability of the chain. Premier Series #80 cottered roller chain features solid bushings and solid rollers and is also constructed of a premium quality carbon steel, which greatly increases the strength, working life, and efficiency of the roller chain. This premium quality 80 roller chain has a tensile strength of 17,600lbs, and a working load of 3,300lbs. #80 cottered roller chain is commonly supplied in 10ft boxes but is also available on 50ft reels, 100ft reels, and as custom lengths per request. This chain uses cotter pins instead of rivets, the benefit of this is that the chain is easier to install sections and eliminate the need of cutting the rivet pins. USA Roller Chain and Sprockets also offers a full line of attachments for this chain and a full line of high quality sprockets! For more information or if you need a custom length please contact us.
Premier Series #80 Cottered Roller Chain Dimensions
Chain Size: #80 Tensile Strength: 17,600lbs Pitch (P): 1.000 Roller Width (W): 0.625" Roller Diameter (D): 0.625" Link Plate Height (H): 0.950" Link Plate Thickness (T): 0.125" Pin Diameter (E): 0.312" Specifications Met: ANSI Standards
Chain Size: #80 Tensile Strength: 17,600lbs Pitch (P): 1.000 Roller Width (W): 0.625" Roller Diameter (D): 0.625" Link Plate Height (H): 0.950" Link Plate Thickness (T): 0.125" Pin Diameter (E): 0.312" Specifications Met: ANSI Standards
