ANSI Premium 80-2 Stainless Steel Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

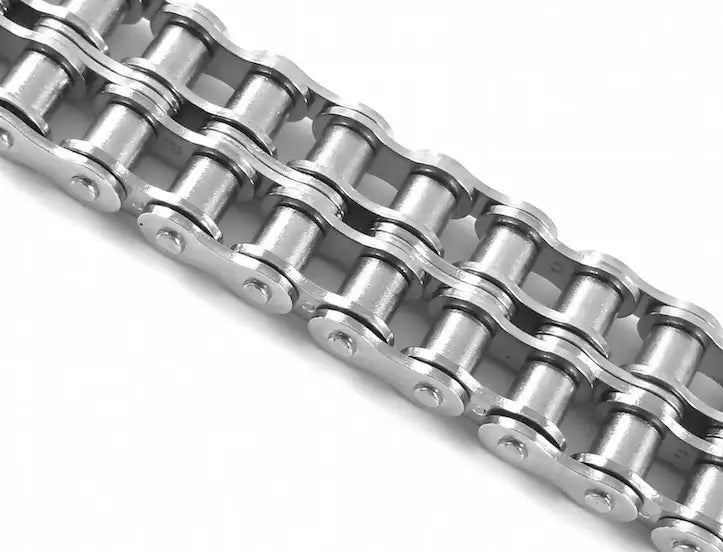

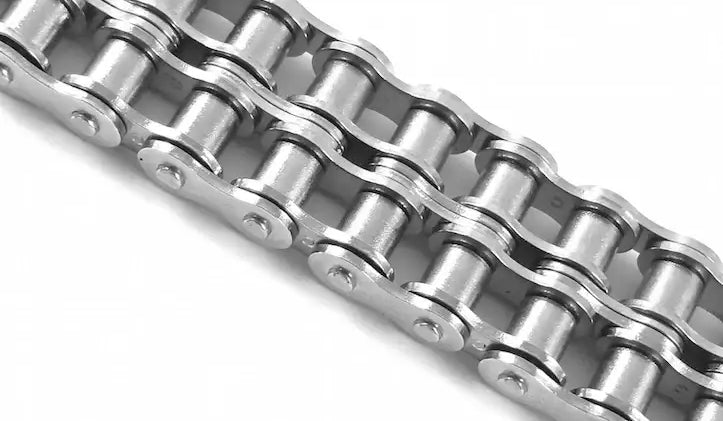

80-2 stainless steel roller chain is a duplex 1" pitch ANSI roller chain constructed from all 304-grade stainless steel components. Our premium 80-2 stainless roller chain sets the bar in terms of quality, performance, and lifespan; due to the quality of stainless steel, we use industry-leading manufacturing techniques and high-precision components. 80-2 stainless steel roller chain is an excellent choice for abrasive, food-grade, and corrosive applications. Additionally, since the chain is made from 304-grade stainless, it has a low level of magnetism compared to carbon steel. We also supply sprockets, chain pullers, breakers, and chain guides for 80-2 stainless steel roller chains. For additional information or to get a quote on our premium 80-2 stainless roller chain, contact our customer support team, and we will gladly assist you!
80-2 Stainless Roller Chain Dimensions
- Part #: 80-2SS
- Pitch (P): 1.000"
- Roller Width (R): 0.625"
- Roller Diameter (D): 0.625"
- Overall Width (W): 2.492"
- Connecting Link Overall Width (X): 2.693"
- Plate Height (H): 0.950"
- Plate Thickness (T): 0.125"
- Pin Diameter (L): 0.312"
- Weight Per Foot: 3.41 LBS
- Part #: 80-2SS
- Pitch (P): 1.000"
- Roller Width (R): 0.625"
- Roller Diameter (D): 0.625"
- Overall Width (W): 2.492"
- Connecting Link Overall Width (X): 2.693"
- Plate Height (H): 0.950"
- Plate Thickness (T): 0.125"
- Pin Diameter (L): 0.312"
- Weight Per Foot: 3.41 LBS
