Premium 60 Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

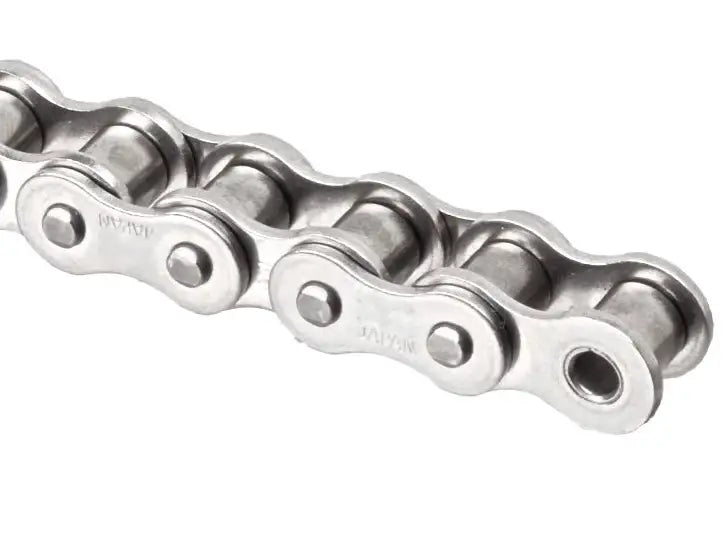

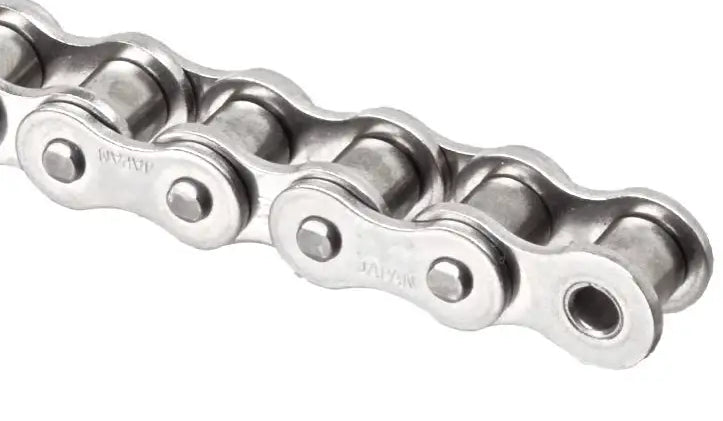

Our tier-one 60 stainless steel roller chain is a 3/4" pitch ANSI chain that exceeds others in terms of performance, working life, and smooth operation. This premium 60 stainless chain is constructed from precision components made entirely of top-quality 304-grade stainless steel for superior corrosion and abrasion resistance. The 60SS roller chain can also operate within a broad spectrum of temperatures. 60 stainless steel roller chains are commonly found in food processing, packaging, corrosive, abrasive applications, and more! We also supply 60 stainless steel sprockets, guides, and chain tools. For additional information or to get a quote on our premium 60 stainless steel roller chain, contact our customer service team, and we will gladly assist you!
60 Stainless Steel Chain Dimensions
- Part #: 60SS
- Pitch (P): 0.750"
- Roller Width (R): 0.500"
- Roller Diameter (D): 0.469"
- Overall Width (W): 1.000"
- Connecting Link Overall Width (X): 1.058"
- Plate Height (H): 0.712"
- Plate Thickness (T): 0.093"
- Pin Diameter (L): 0.234"
- Tensile Strength: 6,200 LBS
- Working Load: 231 LBS
- Weight Per Foot: 0.97 LBS
- Part #: 60SS
- Pitch (P): 0.750"
- Roller Width (R): 0.500"
- Roller Diameter (D): 0.469"
- Overall Width (W): 1.000"
- Connecting Link Overall Width (X): 1.058"
- Plate Height (H): 0.712"
- Plate Thickness (T): 0.093"
- Pin Diameter (L): 0.234"
- Tensile Strength: 6,200 LBS
- Working Load: 231 LBS
- Weight Per Foot: 0.97 LBS
