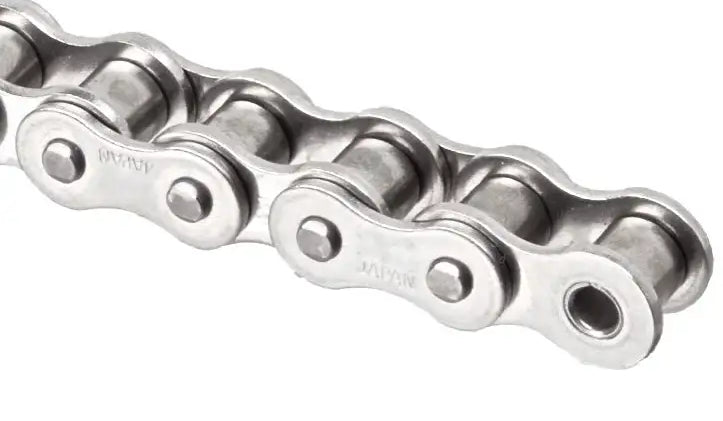

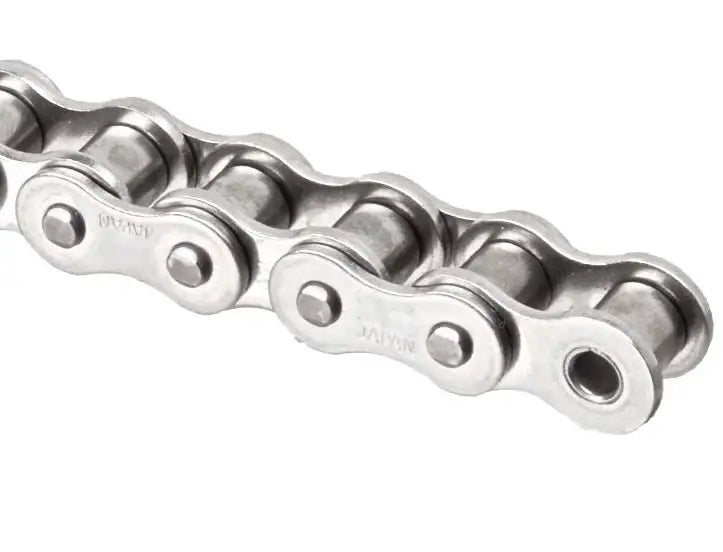

Premium #50 316-Grade Stainless Steel Roller Chain - 10ft Box
Login to Request a Quote
Premium #50 316-Grade stainless steel roller chain exemplifies superior wear, performance, and chemical abrasion resistance when compared to its standard 304SS counterpart. More specifically, 316-grade stainless steel contains a significant amount of molybdenum (2% - 3%) versus in 304-stainless steel there are only trace amounts of this compound found. The result is a 316-grade 50 stainless steel roller chain that is capable of operating in applications containing specific chemicals and environments far longer than the 304SS chain. This chain is also the least-magnetic 50 stainless steel roller chain on the market!
50 316-Grade Stainless Steel Chain Dimensions
- Chain Size: 50SS-316
- Pitch (P): 0.625"
- Roller Width (W): 0.375"
- Roller Diameter (D): 0.400"
- Overall Width (A): 0.794"
- Plate Height (H): 0.594"
- Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Weight: 0.68 LBS/ FT

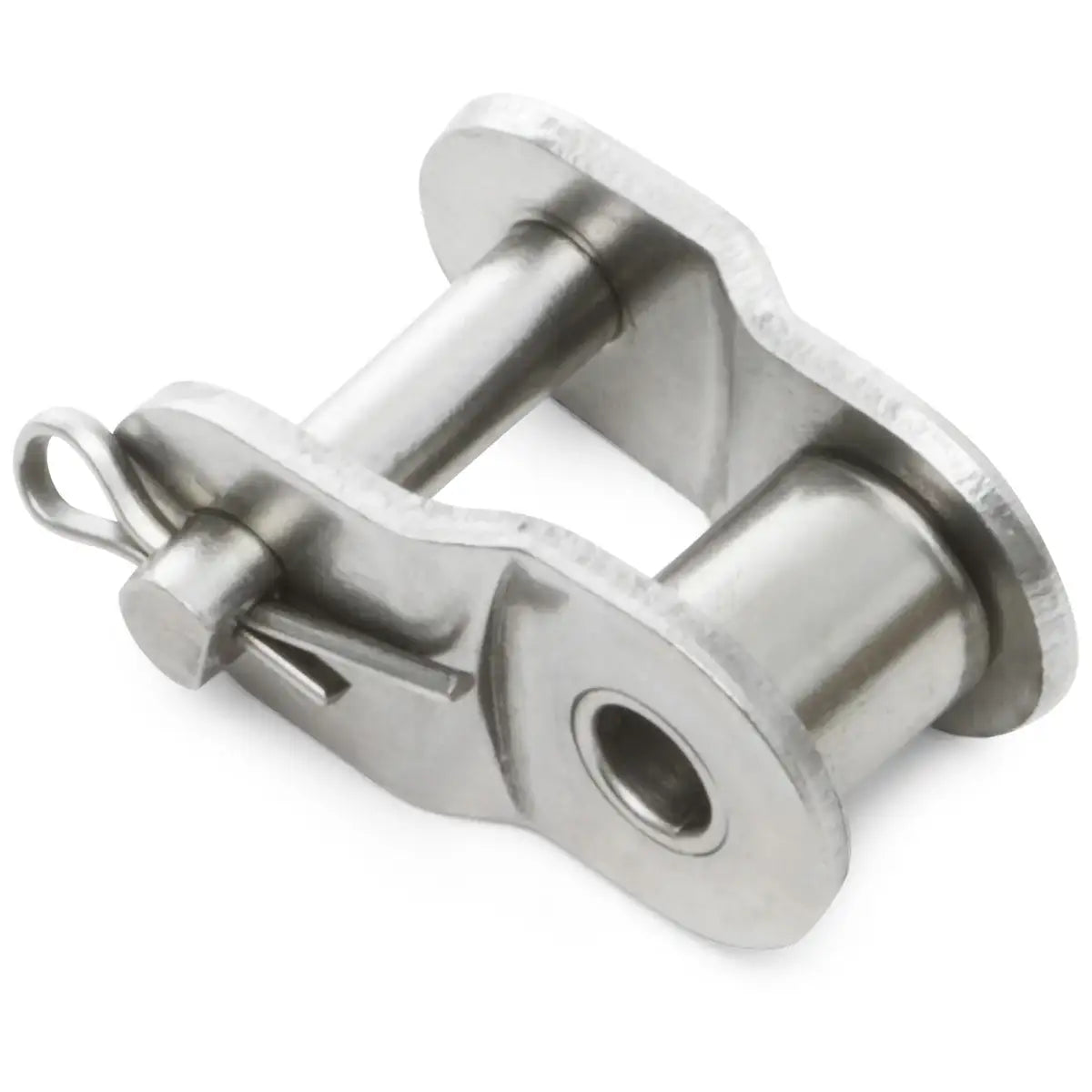

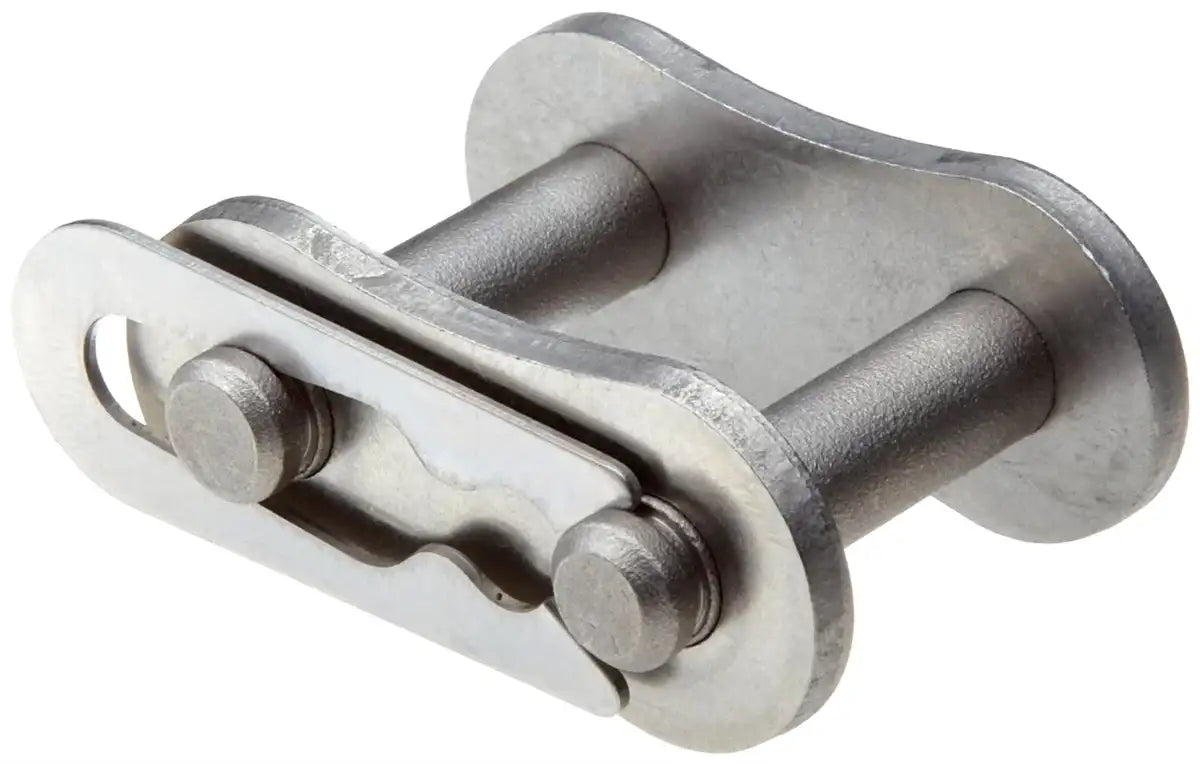

50 316 stainless steel roller chain is supplied as 10ft boxes containing one connecting link each, alternate lengths are available upon request. We also supply stainless steel sprockets and a range of roller chain accessories. For more information or to get a quote please contact us and we will be happy to assist you.
- Chain Size: 50SS-316
- Pitch (P): 0.625"
- Roller Width (W): 0.375"
- Roller Diameter (D): 0.400"
- Overall Width (A): 0.794"
- Plate Height (H): 0.594"
- Plate Thickness (T): 0.079"
- Pin Diameter (E): 0.200"
- Weight: 0.68 LBS/ FT
