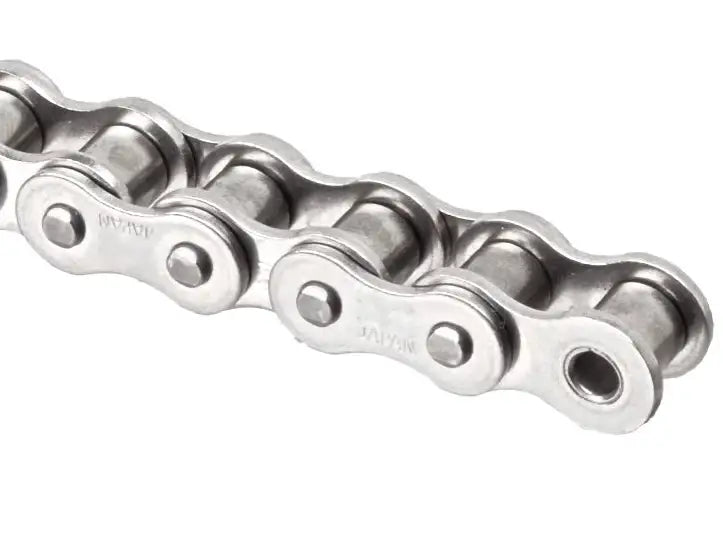

Premium 40 Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

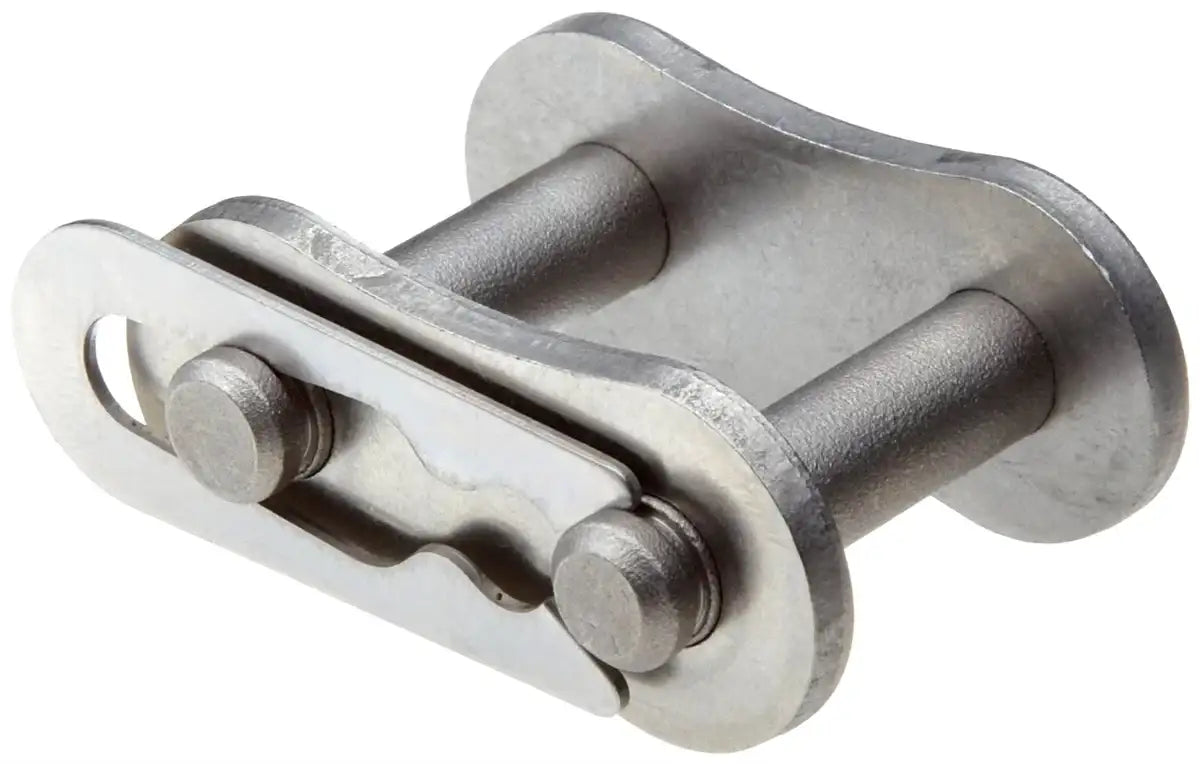

40 stainless steel roller chains are the industry's most commonly used ANSI stainless chain size. Our premium 40 stainless steel roller chain has been perfected to provide superior performance, life, and corrosion resistance versus other options in the market. This chain is assembled in an exact manner using high-precision components made from top-quality 304-grade stainless steel. Additionally, our premium 40 stainless steel chain has a 2,800 lb tensile strength, has a 1/2" pitch, and dimensionally conforms with ANSI B29.1 standards for direct interchangeability with other brands. We supply 40SS roller chains in 10ft boxes, including one connecting link (master link), and in reel lengths of 50ft or 100ft. We also supply 40 stainless sprockets, chain attachments, guides, and other accessories! For additional information or to get a quote on our premium 40 stainless steel roller chain, contact our customer support team, and we will gladly assist you!
40 Stainless Steel Chain Dimensions
- Part #: 40SS
- Pitch (P): 0.500"
- Roller Width (R): 0.312"
- Roller Diameter (D): 0.312"
- Overall Width (W): 0.645"
- Connecting Link Overall Width (X): 0.685"
- Plate Height (H): 0.475"
- Plate Thickness (T): 0.058"
- Pin Diameter (L): 0.156"
- Tensile Strength: 2,800 LBS
- Working Load: 99 LBS
- Weight Per Foot: 0.42 LBS
- Part #: 40SS
- Pitch (P): 0.500"
- Roller Width (R): 0.312"
- Roller Diameter (D): 0.312"
- Overall Width (W): 0.645"
- Connecting Link Overall Width (X): 0.685"
- Plate Height (H): 0.475"
- Plate Thickness (T): 0.058"
- Pin Diameter (L): 0.156"
- Tensile Strength: 2,800 LBS
- Working Load: 99 LBS
- Weight Per Foot: 0.42 LBS
