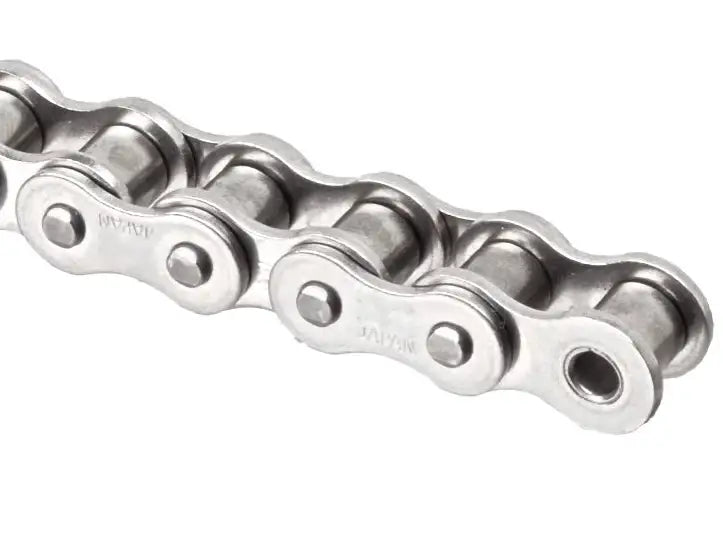

Premium 25 Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
The premium 25 stainless steel roller chain is the smallest ANSI standard stainless chain available. This 1/4" pitch small but mighty 25SS stainless steel chain utilizes precision 304-grade stainless components. Compared to some of the cheaper options in the market, it sets the bar in terms of performance and longevity. 25 stainless steel roller chains are found in food processing, scientific, corrosive applications, and more! Our 25 stainless roller chains are supplied in 10ft boxes that include one connecting link (master link) per box, but they are also available at 50ft or 100ft reel lengths. We also stock a wide range of 25 stainless steel sprockets and other accessories. For additional information or to get a quote on our premium 25 stainless steel roller chain, contact our customer service team, and we will gladly assist you!
25 Stainless Steel Chain Dimensions
- Part #: 25SS
- Pitch (P): 0.250"
- Bushing Width (R): 0.125"
- Bushing Diameter (D): 0.130"
- Overall Width (W): 0.300"
- Connecting Link Overall Width (X): 0.335"
- Plate Height (H): 0.236"
- Plate Thickness (T): 0.030"
- Pin Diameter (L): 0.091"
- Tensile Strength: 880 LBS
- Working Load: 22 LBS
- Weight Per Foot: 0.09 LBS
- Part #: 25SS
- Pitch (P): 0.250"
- Bushing Width (R): 0.125"
- Bushing Diameter (D): 0.130"
- Overall Width (W): 0.300"
- Connecting Link Overall Width (X): 0.335"
- Plate Height (H): 0.236"
- Plate Thickness (T): 0.030"
- Pin Diameter (L): 0.091"
- Tensile Strength: 880 LBS
- Working Load: 22 LBS
- Weight Per Foot: 0.09 LBS
