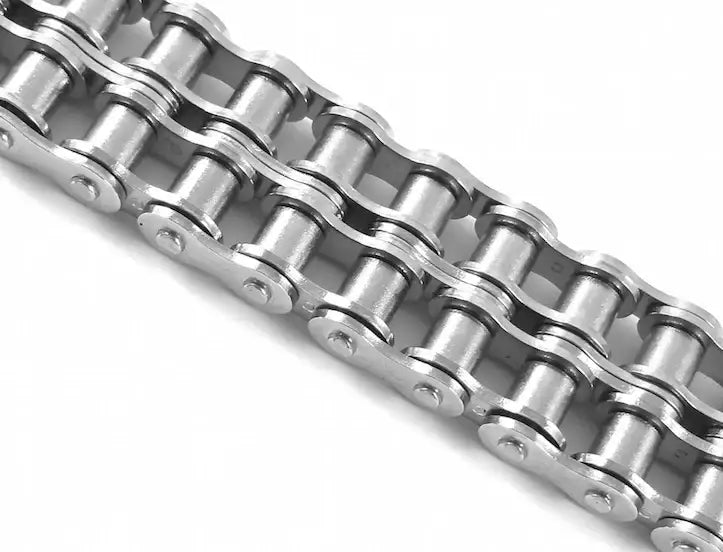

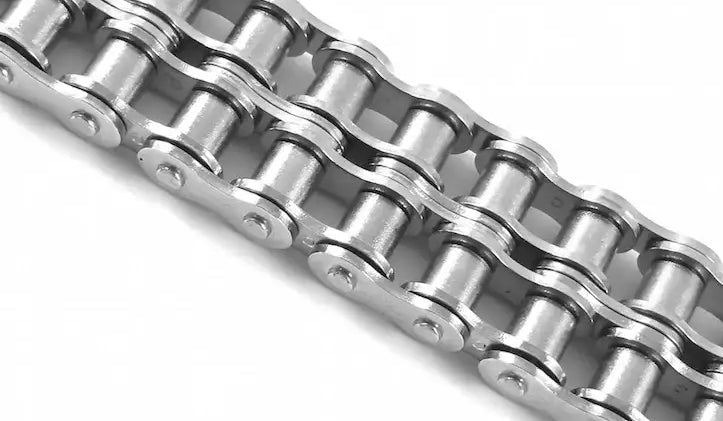

Premium #25-2 Double Strand Stainless Steel Roller Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
This Premium Quality #25-2 Double Strand Stainless Steel Roller Chain fully meets all ANSI standards and will run on ANSI standard #25-2 double strand stainless steel sprockets. Premier Series #25-2 double strand stainless steel roller chain has a working load of 58lbs, and is constructed entirely out of 304-grade stainless steel. Making a roller chain using 304-Grade Stainless Steel creates a stainless steel roller chain that is high strength, resistant to chemical attack, and highly resistant to corrosion. This #25-2 double strand stainless steel roller chain can run in temperatures ranging from -200° - 700° Degrees Fahrenheit, (these temperatures may vary based on application). #25-2 Double Strand Stainless Steel roller chain is commonly supplied as 10ft boxes, but we can also supply the chain as alternate lengths per request. Each 10ft box will come with one connecting link, and we offer additional connecting links and offset links if needed. We also offer a full line of #25-2 Double Strand Stainless Steel Sprockets and attachments. For additional information on #25-2 double strand stainless steel roller chain, or to get a quote for special lengths, attachments, or sprockets, please contact us and we will be happy to assist you.
Chain Size: #25-2SS Load Rating: 58lbs Pitch (P): 0.250" Roller Width (W): 0.125" Bushing Diameter (D): 0.130" Overall Chain Width (F): 0.591" Link Plate Height (H): 0.232" Link Plate Thickness (T): 0.028" Pin Diameter (E): 0.091" -
Specifications Met: ANSI Standards
Chain Size: #25-2SS Load Rating: 58lbs Pitch (P): 0.250" Roller Width (W): 0.125" Bushing Diameter (D): 0.130" Overall Chain Width (F): 0.591" Link Plate Height (H): 0.232" Link Plate Thickness (T): 0.028" Pin Diameter (E): 0.091" Specifications Met: ANSI Standards
