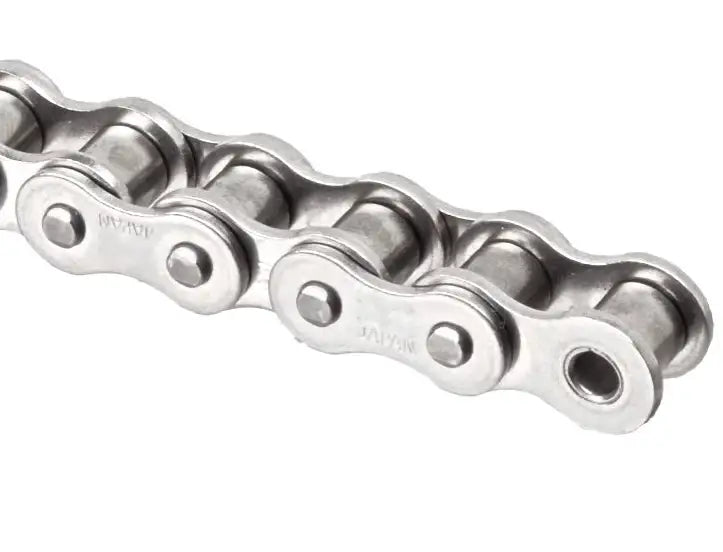

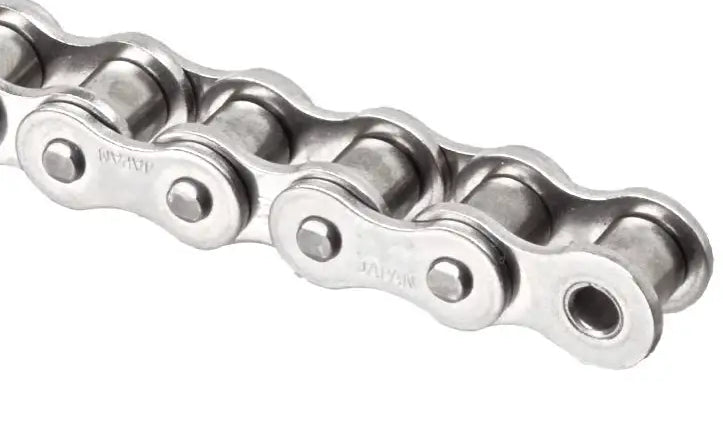

Premium 120 Stainless Steel Roller Chain 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
120 stainless steel roller chain is the largest ANSI stainless chain, considered a standard item with a 1.50" pitch. Our premium 120 stainless steel roller chain sets the bar in terms of performance, quality, and longevity. More specifically, this 120 stainless chain has a tensile strength of 17,200 lbs and is constructed from high-precision 304-grade stainless components. 120 stainless roller chain can operate in demanding, corrosive, abrasive applications and within temperatures ranging from -200 to +700 degrees Fahrenheit. We also supply 120 stainless steel sprockets and other supporting components. For additional information or to get a quote on our premium 120 stainless roller chain, contact our customer service team, and we will gladly assist you!
120 Stainless Steel Chain Dimensions
- Part #: 120SS
- Pitch (P): 1.500"
- Roller Width (R): 1.000"
- Roller Diameter (D): 0.875"
- Overall Width (W): 1.969"
- Connecting Link Overall Width (X): 2.110"
- Plate Height (H): 1.422"
- Plate Thickness (T): 0.189"
- Pin Diameter (L): 0.437"
- Tensile Strength: 869 LBS
- Working Load: 17,300 LBS
- Weight Per Foot: 3.79 LBS
- Part #: 120SS
- Pitch (P): 1.500"
- Roller Width (R): 1.000"
- Roller Diameter (D): 0.875"
- Overall Width (W): 1.969"
- Connecting Link Overall Width (X): 2.110"
- Plate Height (H): 1.422"
- Plate Thickness (T): 0.189"
- Pin Diameter (L): 0.437"
- Tensile Strength: 869 LBS
- Working Load: 17,300 LBS
- Weight Per Foot: 3.79 LBS
