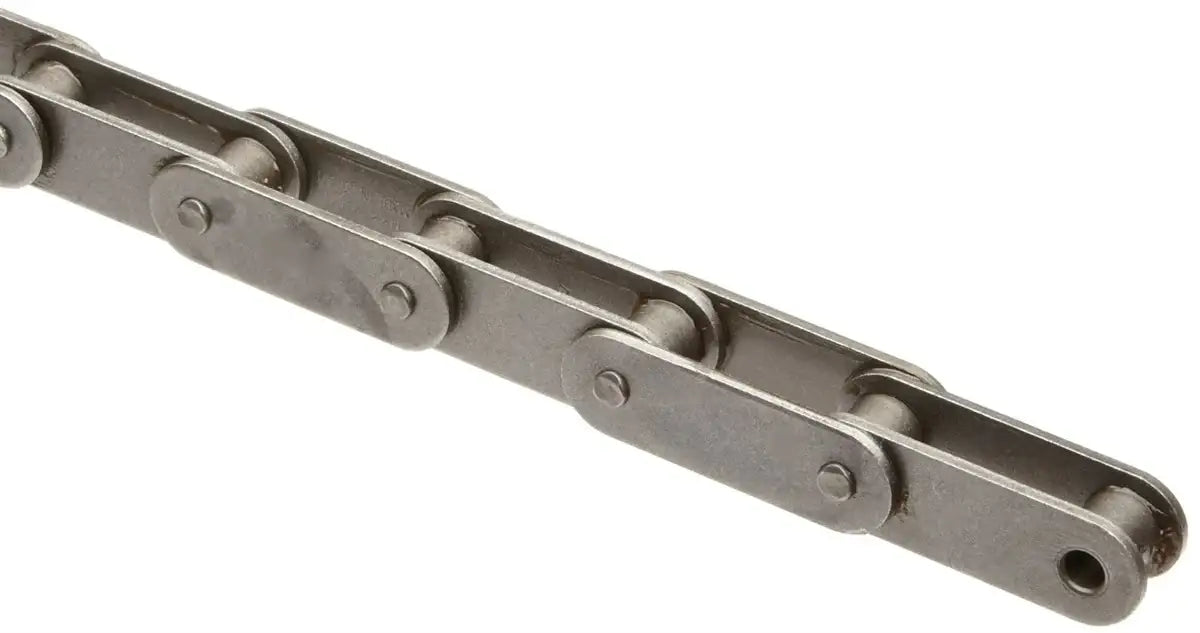

Premium C2160H Conveyor Chain - 10ft Box
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |

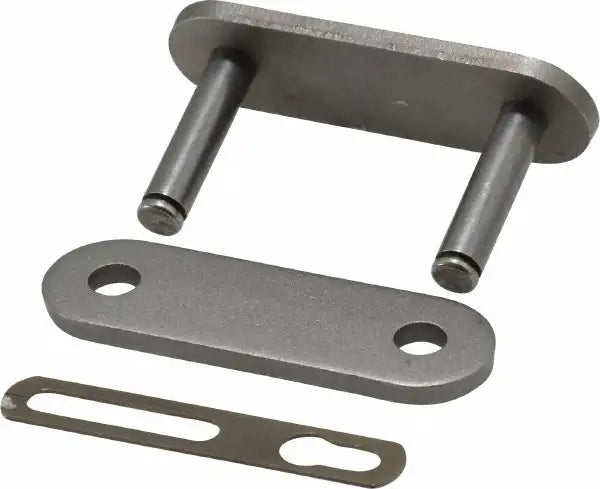

Premium C2160H conveyor chain is engineered to have the longest working life, best performance, and highest strength and manufactured using premium quality high-precision components. This C2160H conveyor chain is used in an extremely wide range of drive and conveying applications and dimensionally fully meets all ANSI Standards. This means that it will properly run on any ANSI C2160H sprocket that you may already be using. What really sets this chain apart is the solid bushing/ solid roller construction along with the usage of high-quality liberation creates a chain that not only exceeds in performance but also has as drastically better working life. In addition to C2160H chain we also offer a full line of the accompanying C2160H sprockets and attachments. This chain is commonly supplied as 10ft boxes including one connecting link each box, but we also custom lengths per request. Fore more information or for large quantities please contact us and we will be happy to assist you!
Dimensions:
- Chain Size: C2160H
- Pitch (P): 4.000"
- Roller Width (W): 1.250"
- Roller Diameter (R): 1.125"
- Plate Height (H): 1.898"
- Plate Thickness (T): 0.281"
- Pin Diameter (D): 0.562"
- Chain Width (F): 2.620"
- Connecting Link Width (G): 2.800"
- Tensile Strength: 58,300 LBS
- Working Load: 9,640 LBS
- Weight: 6.1 LBS/ FT
Phone: (407) 347-3519
Email: sales@usarollerchain.com
See What All We Offer "Here"!
- Chain Size: C2160H
- Pitch (P): 4.000"
- Roller Width (W): 1.250"
- Roller Diameter (R): 1.125"
- Plate Height (H): 1.898"
- Plate Thickness (T): 0.281"
- Pin Diameter (D): 0.562"
- Chain Width (F): 2.620"
- Connecting Link Width (G): 2.800"
- Tensile Strength: 58,300 LBS
- Working Load: 9,640 LBS
- Weight: 6.1 LBS/ FT
