Roller Chain > More Roller Chains > Double Pitch Roller Chain > C2120H Conveyor Chain

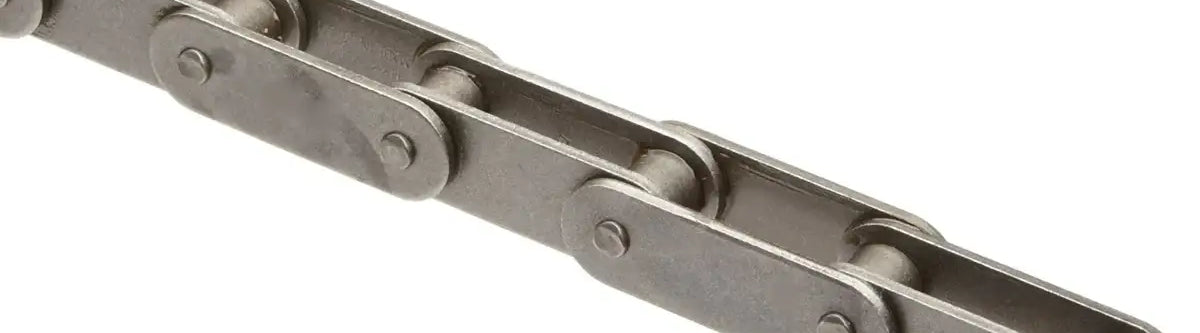

Premium C2120H Conveyor Chain - 10ft Box
Login to Request a Quote
Premium C2120H conveyor chain is engineered to have the longest working life, best performance, and highest strength and manufactured using premium quality high-precision components. This C2120H conveyor chain is used in an extremely wide range of drive and conveying applications and dimensionally fully meets all ANSI Standards. This means that it will properly run on any ANSI C2120H sprocket that you may already be using. What really sets this chain apart is the solid bushing/ solid roller construction along with the usage of high-quality liberation creates a chain that not only exceeds in performance but also has as drastically better working life. In addition to C2120H chain we also offer a full line of the accompanying C2120H sprockets and attachments. This chain is commonly supplied as 10ft boxes including one connecting link each box, but we also custom lengths per request. Fore more information or for large quantities please contact us and we will be happy to assist you!
Dimensions:
- Chain Size: C2120H
- Pitch (P): 3.000"
- Roller Width (W): 1.000"
- Roller Diameter (R): 0.875"
- Plate Height (H): 1.378"
- Plate Thickness (T): 0.218"
- Pin Diameter (D): 0.437"
- Chain Width (F): 2.020"
- Connecting Link Width (G): 2.340"
- Tensile Strength: 35,200 LBS
- Working Load: 5,720 LBS
- Weight: 3.5 LBS/ FT
