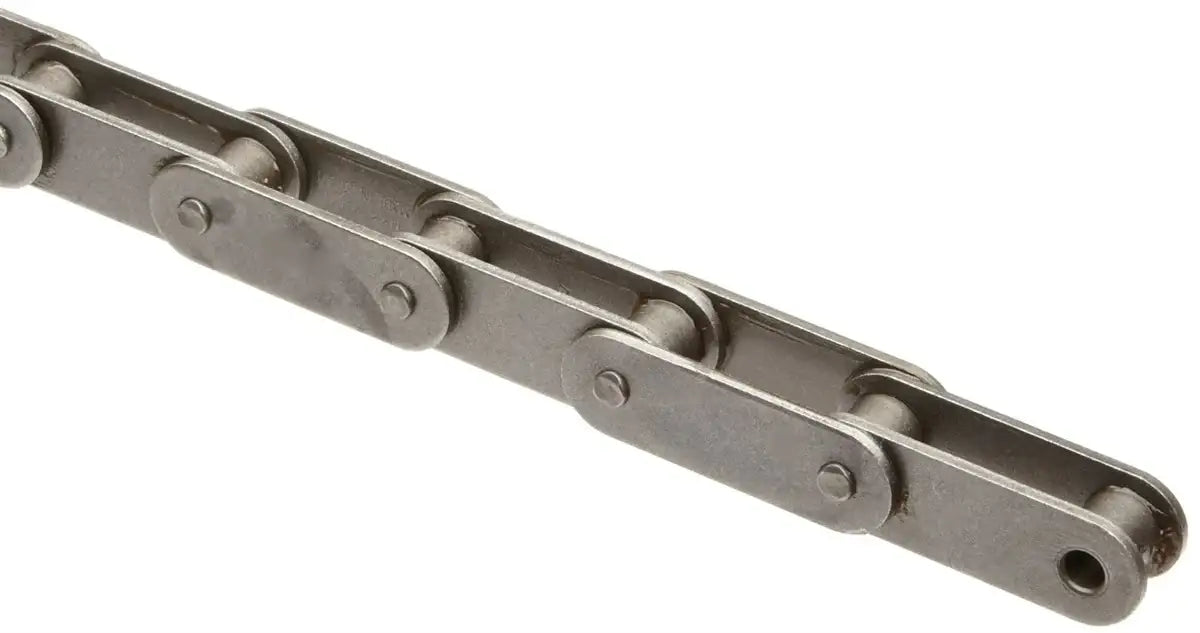

Premium C2060H Conveyor Chain - 10ft Box

Premium C2060H conveyor chain is engineered to have the longest working life, best performance, and highest strength and manufactured using premium quality high-precision components. This C2060H conveyor chain is used in an extremely wide range of drive and conveying applications and dimensionally fully meets all ANSI Standards. This means that it will properly run on any ANSI C2060H sprocket that you may already be using. What really sets this chain apart is the solid bushing/ solid roller construction along with the usage of high-quality liberation creates a chain that not only exceeds in performance but also has as drastically better working life. In addition to C2060H chain we also offer a full line of the accompanying C2060H sprockets and attachments. This chain is commonly supplied as 10ft boxes including one connecting link each box, but we also offer 50ft reels, 100ft reels, and custom lengths per request. Fore more information or for large quantities please contact us and we will be happy to assist you!

Dimensions:

• Chain Size: C2060H
• Pitch (P): 1.500"
• Roller Width (W): 0.500"
• Roller Diameter (R): 0.469"
• Plate Height (H): 0.683"
• Plate Thickness (T): 0.125"
• Pin Diameter (D): 0.234"
• Chain Width (F): 1.172"
• Connecting Link Width (G): 1.248"
• Tensile Strength: 9,020 LBS
• Working Load: 1,452 LBS
• Weight: 0.972 LBS/ FT

Important Note:
When looking for C2060H roller chain (photo below on the left) it is important, not to mix it up with C2062H roller chain (photo below on the right). This is a common and easy mistake to make because both of these chains are manufactured with the same side-plates, meaning that the part number stamped on the side of both chains is most likely "C2060H".
VS.
