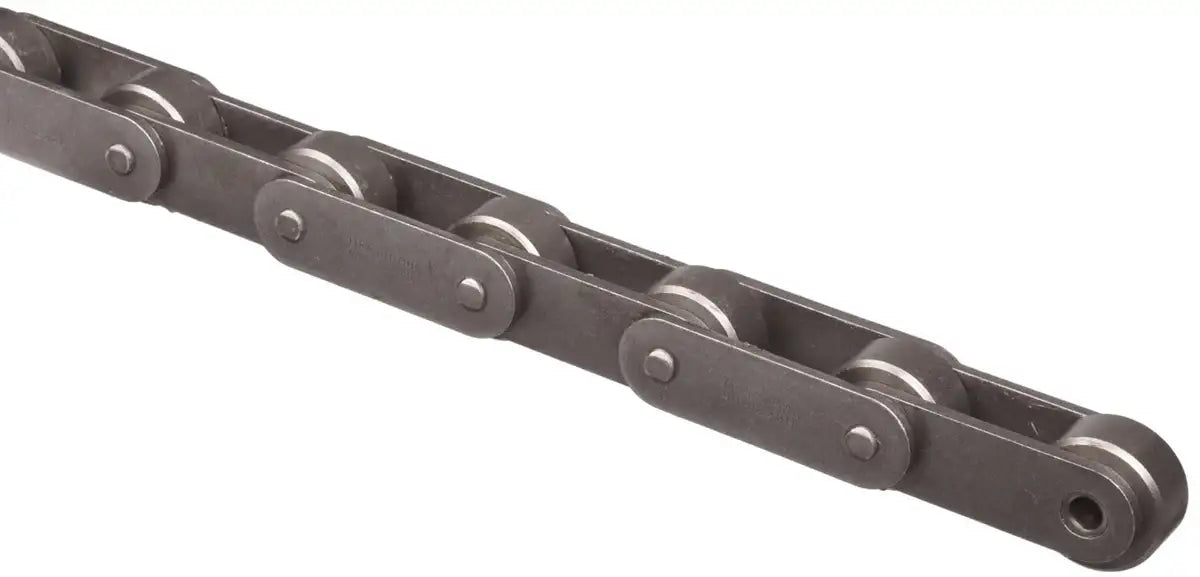

Premium C2052 Roller Chain - 10ft Box
Login to Request a Quote
Premium C2052 roller chain is engineered to have the longest working life, best performance, and highest strength and manufactured using premium quality high-precision components. This C2052 roller chain features oversized rollers and is used in an extremely wide range of drive and conveying applications. Dimensionally it fully meets all ANSI Standards, so it will properly run on any ANSI C2052 sprocket that you may already be using. What really sets this chain apart is the solid bushing/ solid roller construction along with the usage of high-quality liberation creates a chain that not only exceeds in performance but also has as drastically better working life. In addition to C2052 chain we also offer a full line of the accompanying C2052 sprockets and attachments. This chain is commonly supplied as 10ft boxes including one connecting link each box, but we also offer custom lengths per request. Fore more information or for large quantities please contact us and we will be happy to assist you!
- Chain Size: C2052
- Pitch (P): 1.250"
- Roller Width (W): 0.375"
- Roller Diameter (R): 0.750"
- Plate Height (H): 0.593"
- Plate Thickness (T): 0.080"
- Pin Diameter (D): 0.200"
- Chain Width (F): 0.806"
- Connecting Link Width (G): 0.856"
- Tensile Strength: 6,446 LBS
- Working Load: 990 LBS
- Weight: 0.885 LBS/ FT
