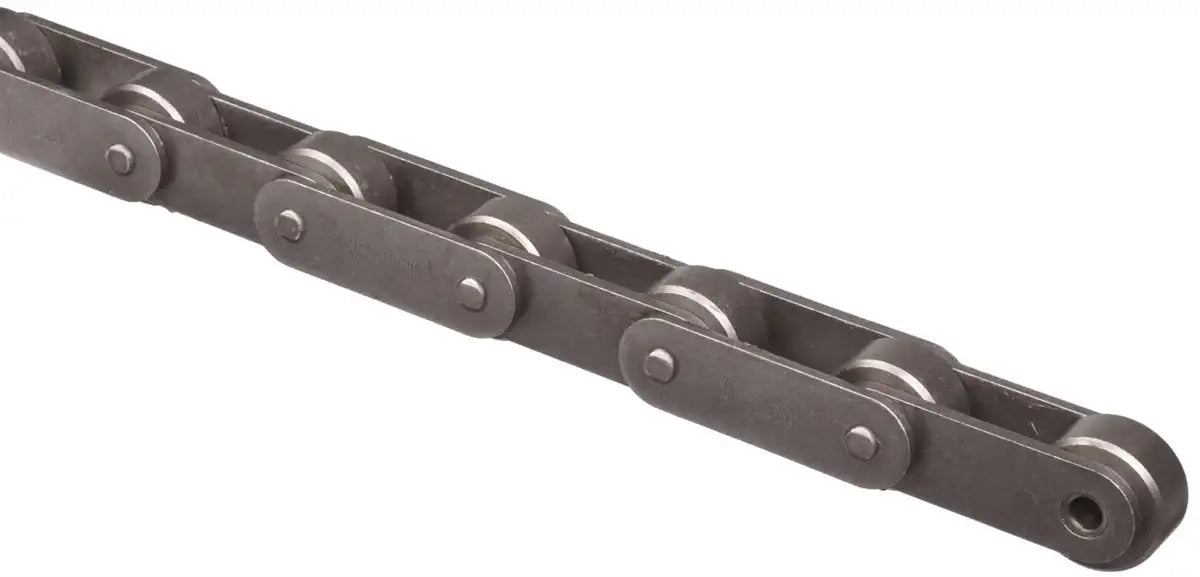

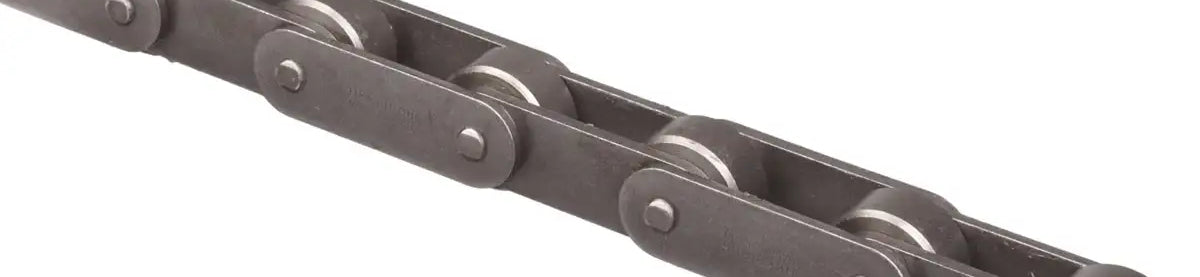

Premium C2042 Roller Chain - 10ft Box

Premium C2042 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$184.99
$184.99
In Stock
On Sale Sold out
Product Code: PRE-C2042-ROLLER-CHAIN
In Stock
Shipping calculated at checkout.

Login to Request a Quote

Other Customers Viewed

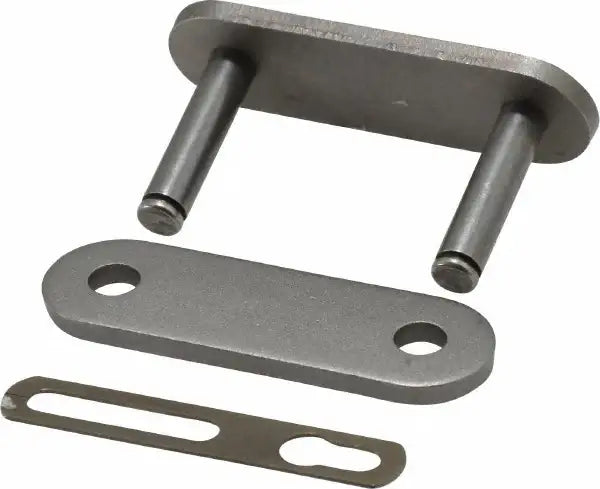

Premium C2042 Double Pitch Roller Chain Connecting (Master) Link
Premium C2042 Double Pitch Roller Chain Connecting (Master) Link
$2.49
Login

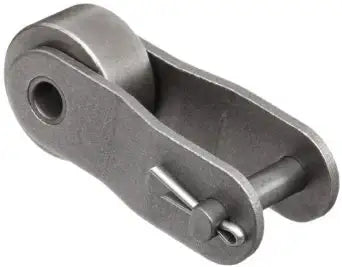

Premium C2042 Offset Link
Premium C2042 Offset Link
$5.99
Login
View full details
Description
Specification
Premium C2042 roller chain is engineered to have the longest working life, best performance, and highest strength and manufactured using premium quality high-precision components. This C2042 roller chain features oversized rollers and is used in an extremely wide range of drive and conveying applications. Dimensionally it fully meets all ANSI Standards, so it will properly run on any ANSI C2042 sprocket that you may already be using. What really sets this chain apart is the solid bushing/ solid roller construction along with the usage of high-quality liberation creates a chain that not only exceeds in performance but also has as drastically better working life. In addition to C2042 chain we also offer a full line of the accompanying C2042 sprockets and attachments. This chain is commonly supplied as 10ft boxes including one connecting link each box, but we also offer custom lengths per request. Fore more information or for large quantities please contact us and we will be happy to assist you!

Dimensions:

  • Chain Size: C2042
  • Pitch (P): 1.000"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.625"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"
  • Connecting Link Width (G): 0.754"
  • Tensile Strength: 3,828 LBS
  • Working Load: 594 LBS
  • Weight: 0.577 LBS/ FT

Phone: (407) 347-3519
Email: sales@usarollerchain.com

See What All We Offer "Here"!

Feature

  • Premium Roller Chain
  • Ultra High Precision Components
  • Extremely Durable
  • Best Performance
  • Slid Bushings And Solid Rollers
  • Features Oversized Rollers
  • Fully Meets All ANSI Standards
  • Comes With Premium Lubricant Applied
Featured image
  • Chain Size: C2042
  • Pitch (P): 1.000"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.625"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"
  • Connecting Link Width (G): 0.754"
  • Tensile Strength: 3,828 LBS
  • Working Load: 594 LBS
  • Weight: 0.577 LBS/ FT
