Premium A2040 Roller Chain - 10ft Box

Note: Custom Cut to Length Chain Also Available
$74.99
SKU: PRE-A2040-ROLLER-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

Quantity

Login to Request a Quote

<p>Don’t see what you need?</p>

Don’t see what you need?

[{"variant_id":"51715312877935" , "metafield_value":""}]
Premium A2040 Roller Chain - 10ft Box Features
Premium A2040 Roller Chain - 10ft Box Specifications

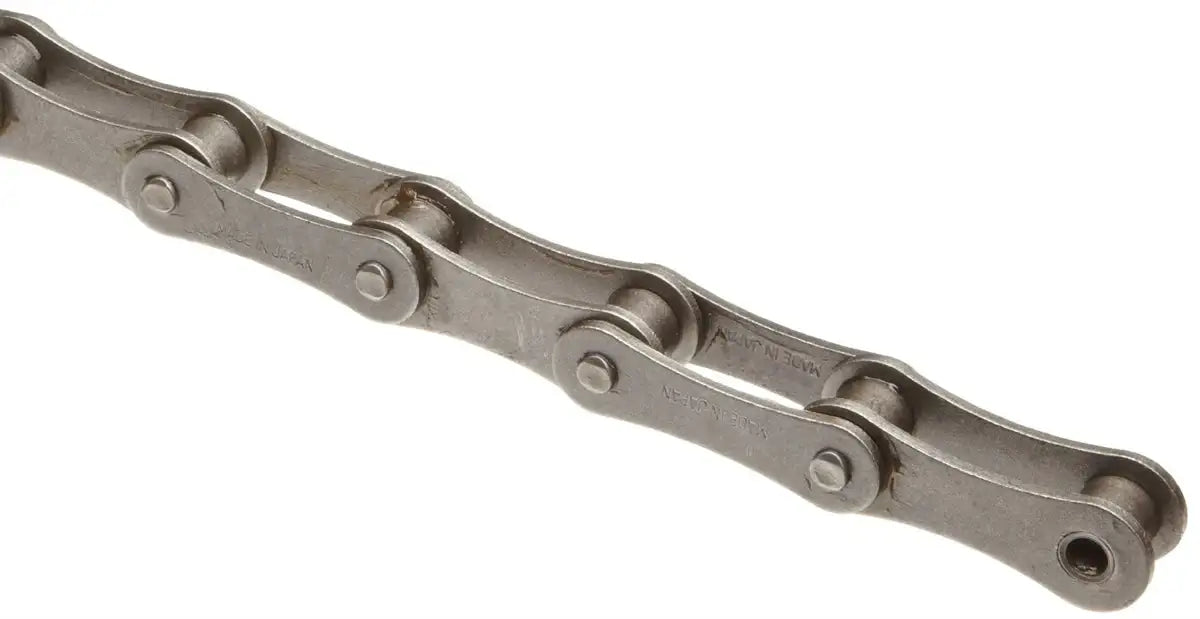

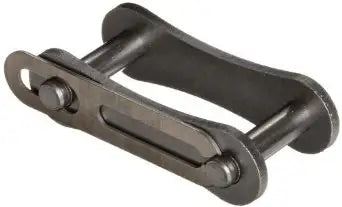

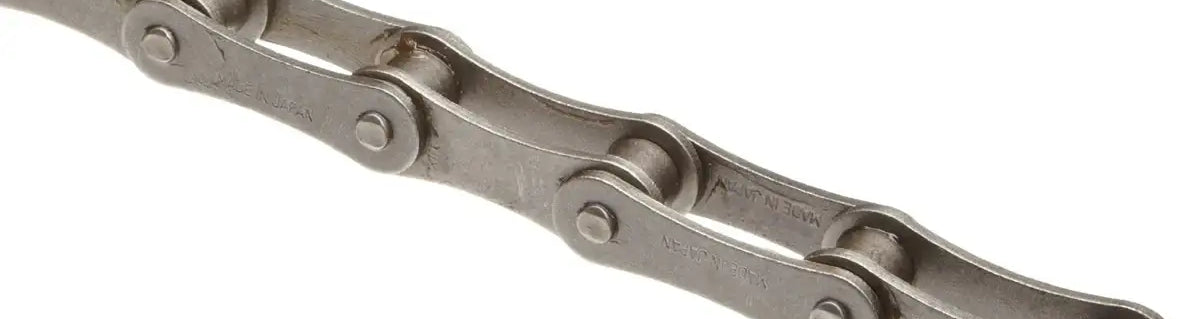

Premium A2040 conveyor chain is engineered to have the longest working life, best performance, and highest strength and manufactured using premium quality high-precision components. This chain is also commonly referred to as A2040 agricultural roller chain due to its heavy usage in the agriculture industry but is used in a very wide range of other applications too. What really sets this chain apart is the solid bushing/ solid roller construction along with the usage of high-quality liberation creates a chain that not only exceeds in performance but also has as drastically better working life. Premium A2040 chain dimensionally fully meets all ANSI Standards so it will operate on standard A2040 sprockets just like other chains. A2040 roller chain is typically supplied as 10ft boxes including one connecting link per box, be alternate lengths are available upon request. Additionally we offer a full line of high-quality A2040 chain sprockets right off the shelf! Fore more information or to get a quote on sprockets please contact us and we will be happy to assist you.

Dimensions:
Premium A2040 Roller Chain - 10ft Box

  • Chain Size: A2040
  • Pitch (P): 1.00"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.312"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"
  • Connecting Link Width (G): 0.750"
  • Tensile Strength: 3,520 LBS
  • Weight: 0.30 LBS/ FT


Phone: (407) 347-3519
Email:
sales@usarollerchain.com

See What All We Offer "
Here"!


  • Chain Size: A2040
  • Pitch (P): 1.00"
  • Roller Width (W): 0.312"
  • Roller Diameter (R): 0.312"
  • Plate Height (H): 0.463"
  • Plate Thickness (T): 0.060"
  • Pin Diameter (D): 0.156"
  • Chain Width (F): 0.640"
  • Connecting Link Width (G): 0.750"
  • Tensile Strength: 3,520 LBS
  • Weight: 0.30 LBS/ FT
