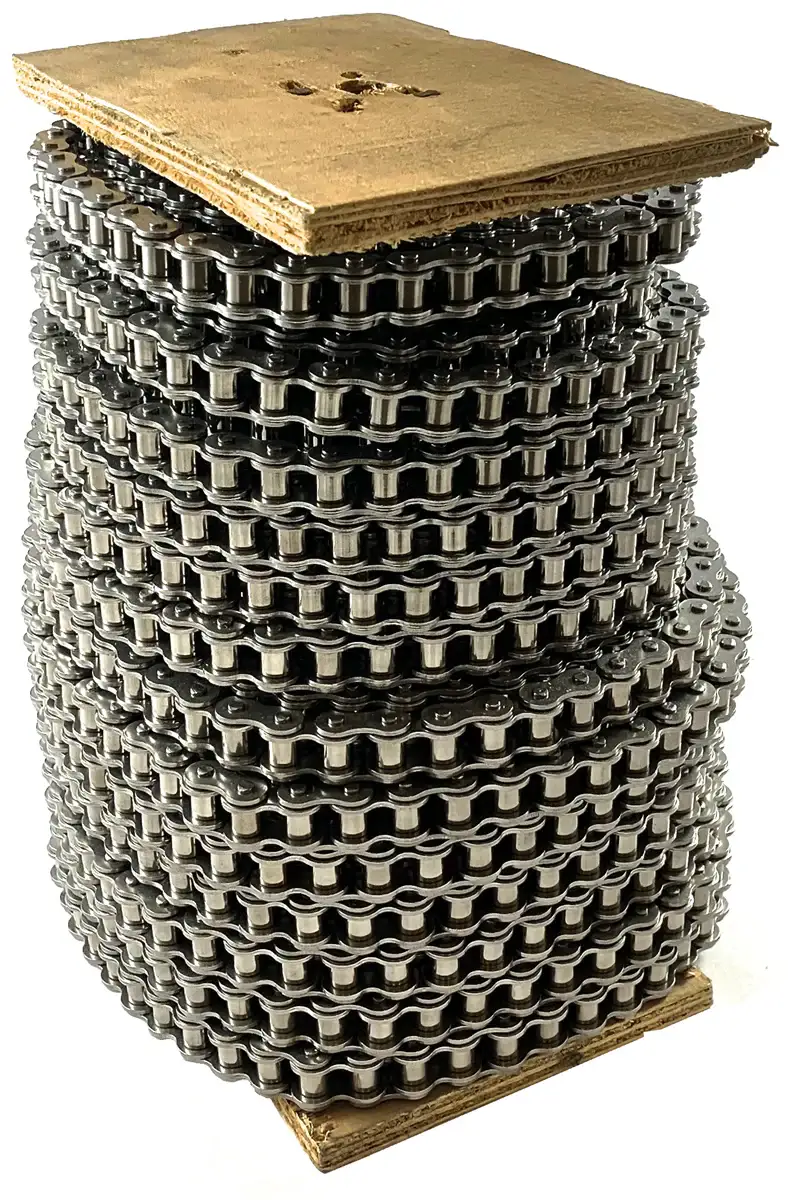

Premier Series #40SS Stainless Steel Roller Chain - 100ft Reel
Carbon Steel Chains
| Features | Premium/Premier | General Duty Plus | Economy Plus |
|---|---|---|---|
| Solid Bushings | Split Bushings in most cases | Split Bushings | |
| Solid Rollers | |||
| Through-Hardened Pins | Case-Hardened Pins | Heat-Treated Pins | |
| Case-Hardened Rollers | Heat-Treated in Some Chains | ||
| Case-Hardened Bushings | Heat-Treated in Some Chains | ||
| Wide Contour Plates | Standard Contour Plates | Standard Contour Plates | |
| Superior Pin to Plate Contact | |||
| High-Hold Riveting | Standard Dual-Stake Rivets | Standard Dual-Stake Rivets | |
| Factory Pre-Loading | Not Standard on Economy Chains | ||
| Specific Heat-Treatment on Every Component | Some Components Might be Heat-Treated | ||
| Premium Alloy & Carbon Materials | High-Quality Carbon Materials | Standard-Quality Carbon Materials | |
| Shot-Peened Components | Non Shot-Peened Components | Non Shot-Peened Components | |
| High-Precision Components | Standard Precision Components | Low Precision Components | |
| Conforms to ANSI B29.1 or ISO/DIN Standards |
Premier Series #40 stainless steel roller chain on a 100ft reel is the top of the food chain when it comes to an anti-corrosive stainless roller chain. Being manufactured with the most precise components, best quality 304-grade stainless material and utilizing proprietary manufacturing processes this chain is made for durability and performance in mind. The Premier Series 40 stainless steel chain is made in accordance with ANSI B29.1 standards so it interchanges with other brands and runs on standard stainless steel sprockets. Being supplied on a 100ft reel makes it possible to make specific cut-to-length strands without additional connection areas that can cause breakages down the line. For additional information please contact us and we will be happy to assist!
40SS Chain Dimensions
- Size: 40SS
- Pitch (P): 0.500"
- Roller Diameter (D1): 0.312"
- Width Between Inner Plates (B1): 0.312"
- Pin Diameter (D2): 0.156"
- Pin Length (LR): 0.70"
- Pin Length (LC): 0.83"
- Inner Plate Height (H2): 0.47"
- Plate Thickness (T): 0.060"
- Tensile Strength: 2,800 LBS
- Weight: 0.4 LBS/ FT
- Size: 40SS
- Pitch (P): 0.500"
- Roller Diameter (D1): 0.312"
- Width Between Inner Plates (B1): 0.312"
- Pin Diameter (D2): 0.156"
- Pin Length (LR): 0.70"
- Pin Length (LC): 0.83"
- Inner Plate Height (H2): 0.47"
- Plate Thickness (T): 0.060"
- Tensile Strength: 2,800 LBS
- Weight: 0.4 LBS/ FT
