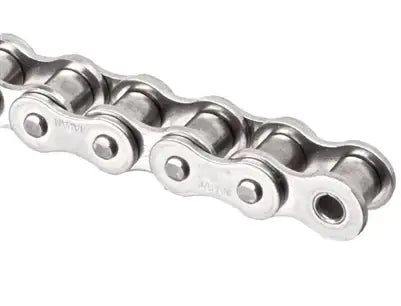

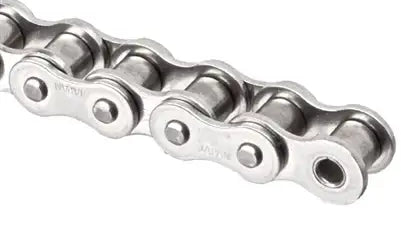

#25 316-Grade Stainless Steel Roller Chain - 10FT Box
Login to Request a Quote
#25 316-Grade Stainless Steel roller chain is manufactured to ANSI B29.1 Standards and provides superior corrosion and chemical resistance versus the standard 304-grade stainless steel. Our 316SS 25 roller chain is made with high-precision parts that undergo proprietary manufacturing processes to ensure that the end result is a premium-quality anti-corrosive roller chain. We supply this chain in a 10ft box including one connecting link (master link) but custom cut to length strand options are also available upon request. For more information or to get a quote on #25 316-Grade Stainless Steel Roller Chain please contact us and we will be happy to assist you.
25 316-Grade Stainless Roller Chain Dimensions
| Chain Size | Pitch (P) | Roller Width (W) | Bushing Diameter (D) | Overall Width (A) | Plate Height (H) | Plate Thickness (T) | Pin Diameter (E) | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|
| 25SS-316 | 0.250" | 0.125" | 0.130" | 0.354" | 0.232" | 0.028" | 0.091" | 0.09 LBS |
| Chain Size | Pitch (P) | Roller Width (W) | Bushing Diameter (D) | Overall Width (A) | Plate Height (H) | Plate Thickness (T) | Pin Diameter (E) | Weight (Per Ft) |
|---|---|---|---|---|---|---|---|---|
| 25SS-316 | 0.250" | 0.125" | 0.130" | 0.354" | 0.232" | 0.028" | 0.091" | 0.09 LBS |
