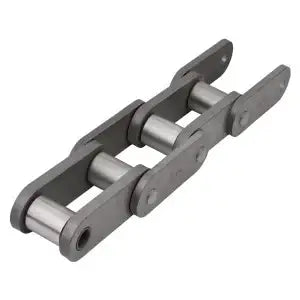

Premium 81XH Heavy Chain 10ft Box
Note:
Custom Cut to Length Chain Also Available
$239.99
SKU: PII-81XH-Chain
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Premium 81XH Heavy Chain 10ft Box Features
Premium 81XH Heavy Chain 10ft Box Specifications
Premium 81XH Heavy chain is a high-strength precision roller chain manufactured to specific quality specifications. What sets this 81XH roller chain apart from other brands is that it features solid bushings, solid rollers, and quad-staked rivets. Manufacturing a roller chain with solid bushings creates many benefits; the most important ones are major performance gain, extended working life, more durability, and less internal friction. Adding solid rollers to the chain ensures sturdy and consistent contact between the chain and sprocket teeth; this increases the chain's working life because it prevents chain deformation and creates better contact between the chain and sprocket. Having quad-staked rivets gives the chain an added advantage in shock-loaded applications and any side load the chain may experience during operation. In addition, this chain also features thicker than standard side plates, which designates this chain as a heavy-duty 81X type roller chain. Overall, this chain really sets the bar for premium 81XH series roller chains and is offered at an extremely competitive price. For more information or a large quantity quote, please contact us, and one of our highly trained customer service representatives will gladly assist you.
Dimensions:
Phone: (407) 347-3519
Email: sales@usarollerchain.com
Dimensions:
- Chain #: 81XH
- Pitch (P): 2.609"
- Roller Width (W): 1.062"
- Roller Diameter (R): 0.905"
- Plate Height (H): 1.122"
- Plate Thickness (T): 0.218"
- Pin Diameter (D): 0.437"
- Overall Chain Width (F): 1.875"
- Overall Connecting Link Width: 2.250"
- Tensile Strength: 34,000 LBS
- Weight Per Foot: 3.5 LBS
Phone: (407) 347-3519
Email: sales@usarollerchain.com
- Chain #: 81XH
- Pitch (P): 2.609"
- Roller Width (W): 1.062"
- Roller Diameter (R): 0.905"
- Plate Height (H): 1.122"
- Plate Thickness (T): 0.218"
- Pin Diameter (D): 0.437"
- Overall Chain Width (F): 1.875"
- Overall Connecting Link Width: 2.250"
- Tensile Strength: 34,000 LBS
- Weight Per Foot: 3.5 LBS
