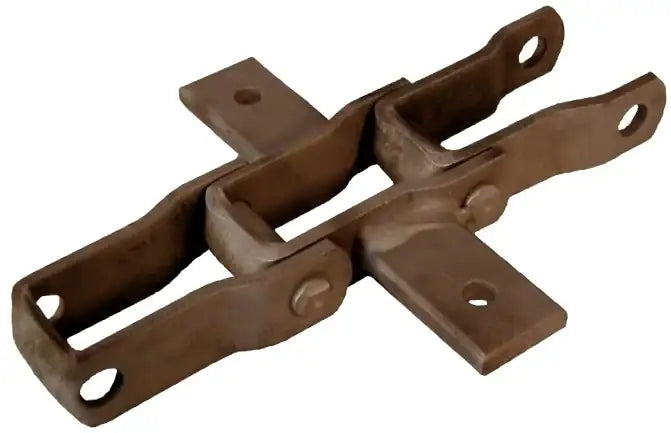

PII 667XH with K1S Tabs Welded Both Sides Every 5th Link - 10ft Box
PII 667XH with K1S Tabs Welded Both Sides Every 5th Link - 10ft Box
Note:
Custom Cut to Length Chain Also Available
Product Code: PII-667XH-K1S-5-CHAIN
Shipping calculated at checkout.
Couldn't load pickup availability
Other Customers Viewed
PII 667XH pintle chain with K1S attachments tabs welded both sides every 5th link sets its self apart from others by featuring heat-treated premium components, high tensile strength, offers extreme durability, along with having high quality welded AS attachments. 667XH pintle chain with K1S attachments every 5th is ideally used for material spreading equipment, hay handling equipment, wood processing, and more. This chain also features pins that are quad-staked fully heat-treated to provide the maximum durability and strength. Additionally this chain is oil quenched during the heat-treating process to ensure ideal and proper medal hardening. This 667XH pintle chain also features a well engineered open-barreled design which minimizes the contact between the pin and surface, as well as preventing material build up that often results in the chain freezing. On top of that the open barrel design also helps remove build up on sprockets, thus increasing the overall life and performance of the chain and sprockets. We also offer a complete line of 667XH pintle chain sprockets and bolt on or weld on slats/ crossbars for creating a complete assembly. For more information, large quantity request, sprockets, or crossbars/ slats please contact us and we will be happy to assist you.
Dimensions:
Phone: (407) 347-3519
Email:sales@usarollerchain.com
Dimensions:
- Chain Size: 667XH
- Pitch (P): 2.250"
- Ultimate Strength: 28,000lbs
- Side Bar Height (B): 1.050"
- Side Bar Thickness (C): 0.225"
- Rivet Diameter (D): 0.465"
- Overall Width (E): 2.414"
- Maximum Sprocket Thickness (F): 1.000"
- Attachment Type: K1S
- Dimension (J): 3.750"
- Dimension (K): 4.658"
- Dimension (M): 1.125"
- Dimension (N): 0.375"
- Dimension (T): 0.250"
Phone: (407) 347-3519
Email:
Feature
- Premium Pintle Chain
- Has K1S Attachment Every 5th Link
- Quad-Staked Pins
- Heat-Treated Components
- Open Barrel Design
- Uses High-Quality Steel
- Chain Size: 667XH
- Pitch (P): 2.250"
- Ultimate Strength: 28,000lbs
- Side Bar Height (B): 1.050"
- Side Bar Thickness (C): 0.225"
- Rivet Diameter (D): 0.465"
- Overall Width (E): 2.414"
- Maximum Sprocket Thickness (F): 1.000"
- Attachment Type: K1S
- Dimension (J): 3.750"
- Dimension (K): 4.658"
- Dimension (M): 1.125"
- Dimension (N): 0.375"
- Dimension (T): 0.250"
