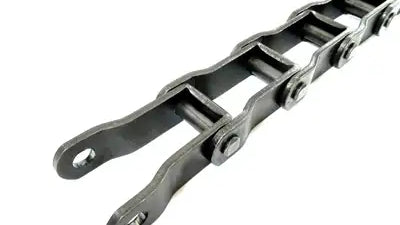

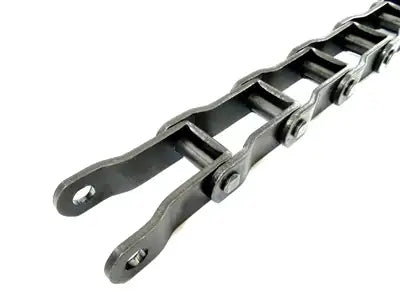

PII 667H Steel Pintle Chain - 10ft Box

Name: PII 667H Steel Pintle Chain - 10ft Box
Brand: USA ROLLER CHAIN
SKU: PII-667H-CHAIN
Availability: InStock

SKU: PII-667H-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable Contact Us For Pricing & Availability

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Call to order

Don’t see what you need? In a rush?

Call us!

Buy it With:

PII 667H Steel Pintle Chain - 10ft Box Description/Features

PII 667H Steel Pintle Chain - 10ft Box Specifications

PII 667H pintle chain sets its self apart from others by featuring heat-treated premium components, high tensile strength, and offers extreme durability. 667H pintle chain is ideally used for material spreading equipment, hay handling equipment, wood processing, and more. This chain also features pins that are quad-staked fully heat-treated to provide the maximum durability and strength. Additionally this chain is oil quenched during the heat-treating process to ensure ideal and proper medal hardening. This 667H pintle chain also features a well engineered open-barreled design which minimizes the contact between the pin and surface, as well as preventing material build up that often results in the chain freezing. On top of that the open barrel design also helps remove build up on sprockets, thus increasing the overall life and performance of the chain and sprockets. We also offer a complete line of 667H pintle chain sprockets and attachments. For more information, large quantity request, sprockets, or attachments please contact us and we will be happy to assist you.

Dimensions:

Chain Size: 667H
Pitch (P): 2.313"
Ultimate Strength: 14,000lbs
Side Bar Height (B): 0.875"
Side Bar Thickness (C): 0.125"
Rivet Diameter (D): 0.312"
Overall Width (E): 1.906"
Maximum Sprocket Thickness (F): 0.875"
Weight Per 10ft: 11.7 lbs
