3 HP Rotary Phase Converter Motor - 3 Lead Single Voltage
Note:
Custom Cut to Length Chain Also Available
$328.99
SKU: PC3-CI-TF-182T-4-B-B-3
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
3 HP Rotary Phase Converter Motor - 3 Lead Single Voltage Features
3 HP Rotary Phase Converter Motor - 3 Lead Single Voltage Specifications

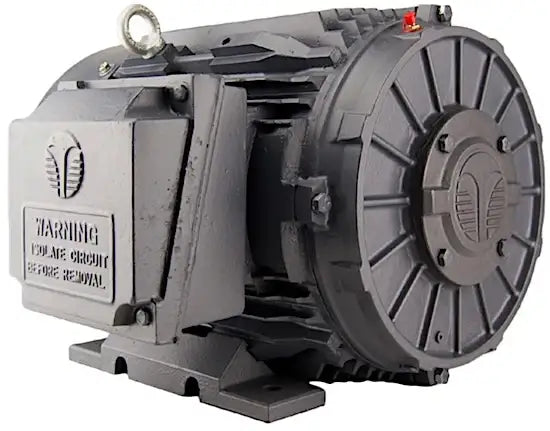

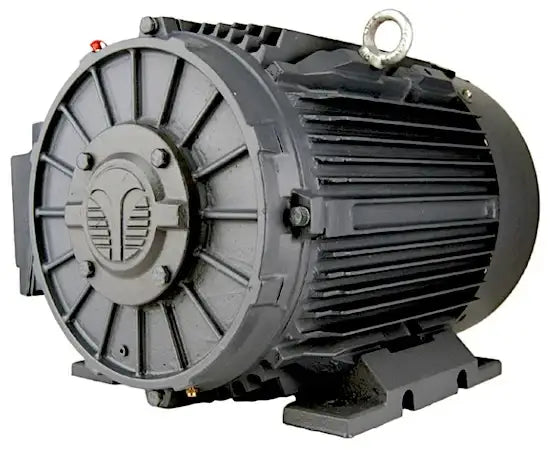

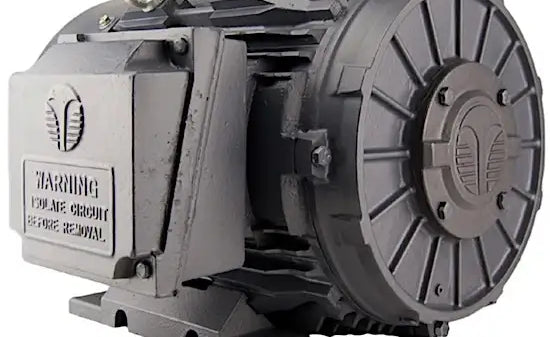

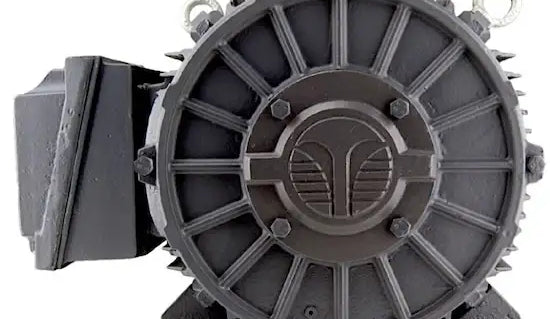

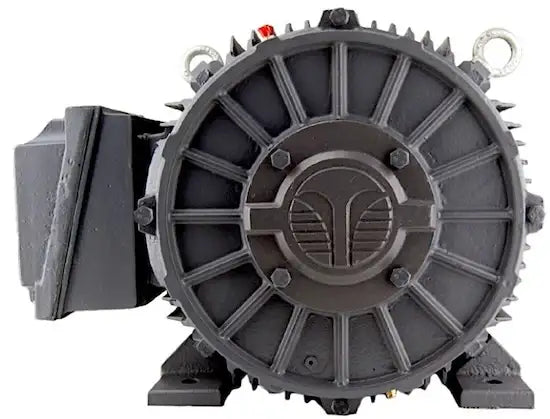

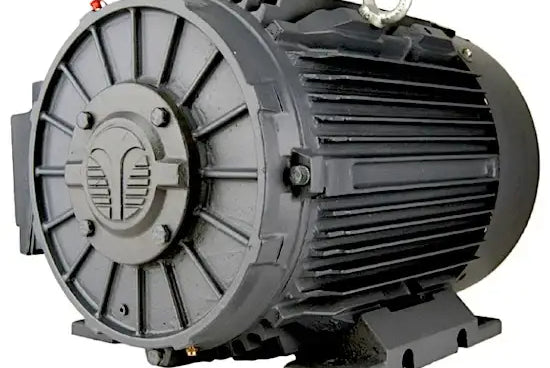

Our premium 3 HP rotary phase converter motor with three lead single-voltage configurations is designated by part # PC3-CI-TF-182T-4-B-B-3 and sets the bar in terms of performance, lifespan, and durability! Encapsulated in a high-strength IP55-rated cast iron housing that is totally enclosed and fan-cooled (TEFC), this 3 horsepower phase converter motor has dual oversized bearings, double-lip oil seals, one-way brass condensation drains, and an industry-leading 24-month warranty. The PC3-CI-TF-182T-4-B-B-3 motor is also F1, F2, and F3 field convertible. For additional information or to get a quote from our customer service team on our premium 3 hp rotary phase converter motor, contact us today, and we will gladly assist you!
- Download Drawing
- Download Spec Sheet
3 HP Rotary Phase Converter Motor Specs
- Part #: PC3-CI-TF-182T-4-B-B-3
- Horse Power: 3
- Frame Size: 182T
- Body: T
- Poles: 4
- RPM: 1800
- Voltage: 230
- Rating: IP55
- Weight: 94.815 LBS
- Download Drawing - Download Spec Sheet- Part #: PC3-CI-TF-182T-4-B-B-3
- Horse Power: 3
- Frame Size: 182T
- Body: T
- Poles: 4
- RPM: 1800
- Voltage: 230
- Rating: IP55
- Weight: 94.815 LBS
