By Application > Agricultural Products > Implement Planter Chain

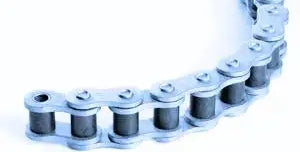

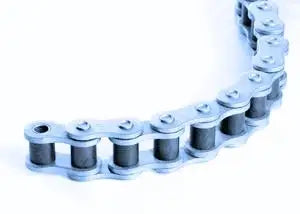

Coated John Deere AA43718 Chain - #41 X 113 Links
Note:
Custom Cut to Length Chain Also Available
$15.99
SKU: PC-41-113P-CTD-CHAIN
Item is in stockOnly 0 left in stockItem is out of stock
Item is unavailable
Login to Request a Quote
Buy it With:
Coated John Deere AA43718 Chain - #41 X 113 Links Features
Coated John Deere AA43718 Chain - #41 X 113 Links Specifications
This anti-corrosive coated #41 planter chain replaces John Deere AA43718 chains and is 113 links long. It is manufactured dimensionally to ANSI B29.1 Standards but features heat-treated components, a high-performance solid roller design, and an anti-corrosive coating to prevent rust over time. We use a high-quality ANSI roller chain because lower quality roller chains can result in an erratic movement which would cause inconsistent seed spacing. Additionally, using a coated roller chain will prevent rust and will hold up longer than non-coated roller chains.
Helpful Tips:
AA43718 Specifications
- Chain Size: ANSI 41
- Length: 113-Links
- Strength: 2,760 LBS
- Pitch (P): 0.500"
- Plate Height (H): 0.390"
- Roller Diameter (D): 0.306"
- Plate Thickness (T): 0.050"
- Pin Diameter (E): 0.141"
- Roller Width (W): 0.250"
- Overall Width Including C/L (F): 0.575"
- Always inspect your roller chain before operation
- Keep chains well lubricated to ensure optimal performance
- Never use a rusted and or stiff roller chain
- Chain Size: ANSI 41
- Length: 113-Links
- Strength: 2,760 LBS
- Pitch (P): 0.500"
- Plate Height (H): 0.390"
- Roller Diameter (D): 0.306"
- Plate Thickness (T): 0.050"
- Pin Diameter (E): 0.141"
- Roller Width (W): 0.250"
- Overall Width Including C/L (F): 0.575"
