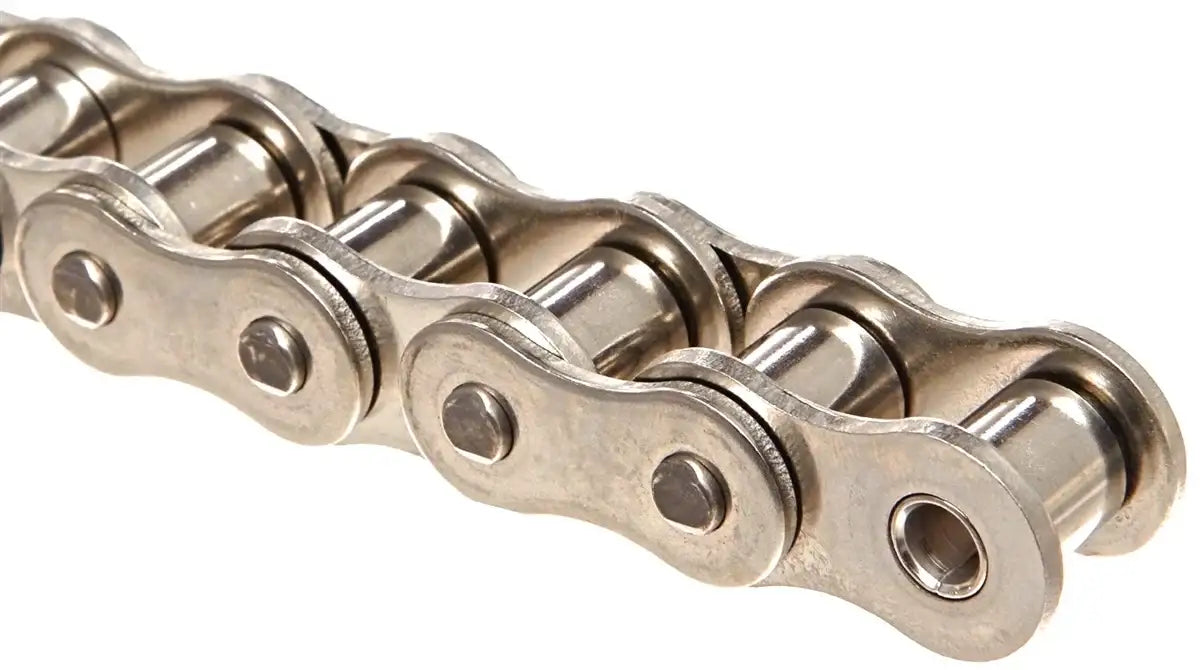

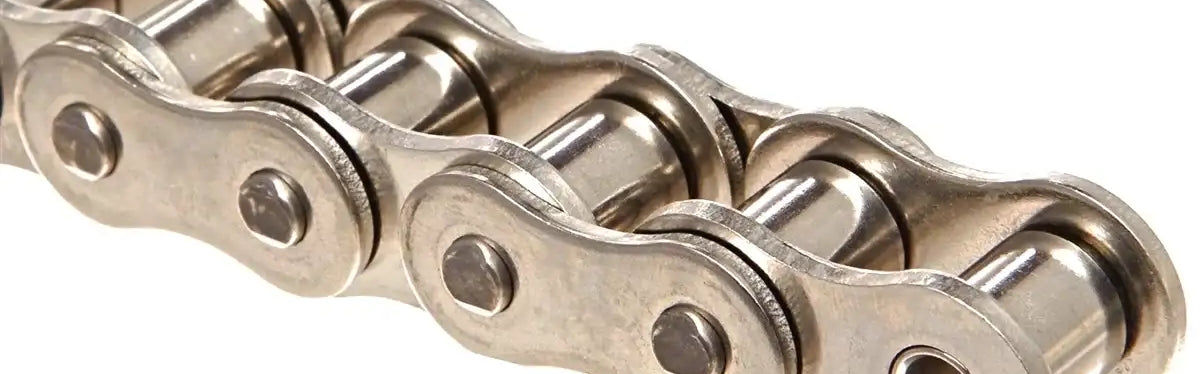

Premier Series #100 Nickel Plated Roller Chain - 10ft Box

Name: Premier Series #100 Nickel Plated Roller Chain - 10ft Box
Brand: USA ROLLER CHAIN
SKU: P100-NICKEL-ROLLER-CHAIN
Price: 919.99 USD
Availability: InStock

$919.99

SKU: P100-NICKEL-ROLLER-CHAIN

In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Carbon Steel Chains

Features	General Duty Plus	Economy Plus
Solid Bushings	Split Bushings in most cases	Split Bushings
Solid Rollers
Through-Hardened Pins	Case-Hardened Pins	Heat-Treated Pins
Case-Hardened Rollers		Heat-Treated in Some Chains
Case-Hardened Bushings		Heat-Treated in Some Chains
Wide Contour Plates	Standard Contour Plates	Standard Contour Plates
Superior Pin to Plate Contact
High-Hold Riveting	Standard Dual-Stake Rivets	Standard Dual-Stake Rivets
Factory Pre-Loading		Not Standard on Economy Chains
Specific Heat-Treatment on Every Component		Some Components Might be Heat-Treated
Premium Alloy & Carbon Materials	High-Quality Carbon Materials	Standard-Quality Carbon Materials
Shot-Peened Components	Non Shot-Peened Components	Non Shot-Peened Components
High-Precision Components	Standard Precision Components	Low Precision Components
Conforms to ANSI B29.1 or ISO/DIN Standards

Request a Quote

Don’t see what you need? In a rush?

Call us!

Buy it With:

Premier Series #100 Nickel Plated Roller Chain - 10ft Box Description/Features

Premier Series #100 Nickel Plated Roller Chain - 10ft Box Specifications

This premium #100 nickel plated roller chain offers extremely high strength, a very long working life, and the best performance. The Premier Series nickel plated roller chain takes quality to a whole new level with extreme precision ANSI components, a very high quality carbon steel, and a shiny premium nickel plating finish to prevent corrosion. Each component in this roller chain has been heat-treated, shot peened, and pre stretched to provide the ultimate strength and performance that this chain has to offer. The nickel plating on this chain has been done to each component before being assembled and then inspected to ensure a full coverage and a smooth surface to for the longest working life possible and to prevent chemical attack along with stress cracking. Nickel plated roller chain is very useful in humid and slightly corrosive applications where a normal roller chain won't hold up. Premier Series #100 nickel plated roller chain features the same high strength as the normal Premier Series #100 roller chain does. #100 nickel plated roller chain is commonly supplied as 10ft boxes including one connecting link per box. However, we can supply the chain in larger length reels and even custom lengths per request. Additionally we offer a full line of nickel plated attachments and high quality ANSI #100 sprockets.

Premium #100 Nickel Plated Chain Dimensions

Part Number: #100NP
Tensile Strength: 26,620 LBS
Working Load: 5,060 LBS
Pitch (P): 1.250"
Roller Width (W): 0.750"
Roller Diameter (D): 0.750"
Chain Overall Width (F): 1.580"
Overall Width Of Connecting Link: 1.730"
Link Plate Height (H): 1.188"
Link Plate Thickness (T): 0.157"
Pin Diameter (E): 0.375"
Weight Per Foot: 2.65 LBS
